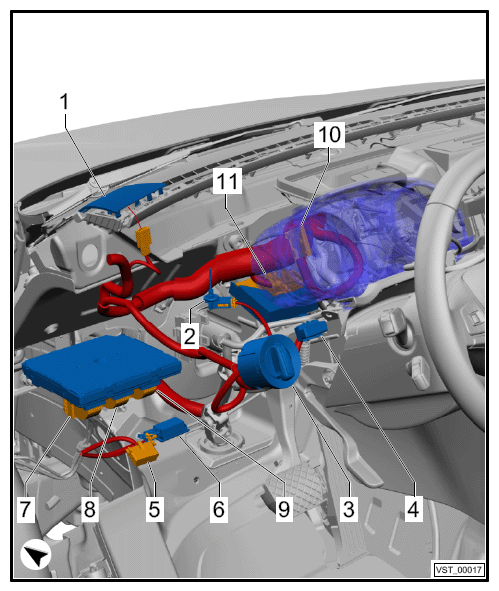

Instrument Panel - Left
- 1 - Left Front Treble Speaker -R20-
- 2 - Left Vent Temperature Sensor -G150-
- 3 - Rotary Light Switch -EX1-
- 3 - Light Switch -E1-
- 3 - Fog Lamp Switch -E7-
- 3 - Rear Fog Lamp Switch -E18-
- 4 - Instrument Panel And Switch Illumination Dimmer Switch -E20-
- 5 - Diagnostic Connection -U31-
- 6 - Left Front Footwell Illumination Bulb -L151-
- 7
- Vehicle Electrical System Control Module -J519-
- 52-Pin Connector -T52A-
- 8
- Vehicle Electrical System Control Module - J519
- 52-Pin Connector -T52B-
- 9
- Vehicle Electrical System Control Module - J519
- 52-Pin Connector -T52C-
- 10 - Instrument Cluster -KX2-
- 10 - Anti-Theft Immobilizer Control Module -J362-
- 10 - Instrument Cluster Control Module -J285-
- 11
- Access/Start Authorization Control Module -J518-
