Climatic, Part I

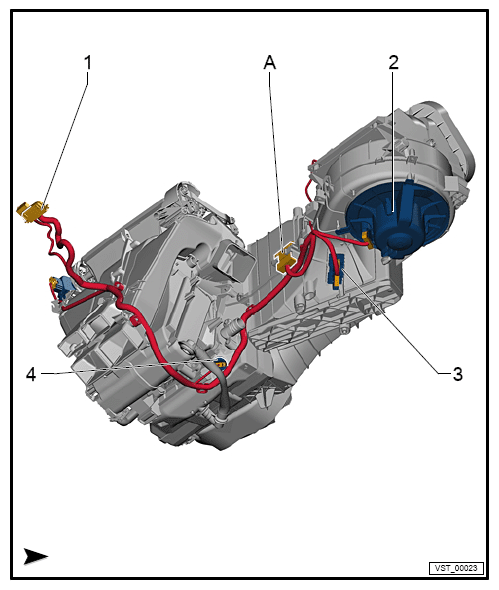

  1. 1  - A/C Control Module -J301
    • 16-Pin Connector -T16G-
  2. 2  - Fresh Air Blower Control Module -J126-
  3. 2  - Fresh Air Blower -V2-
  4. 3 - Fresh Air Blower Series Resistor With Fuse -N24-
  5. 4  - Evaporator Temperature Sensor -G308-
  6. A  - 10-Pin Connector - T10A
    G12756562Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
