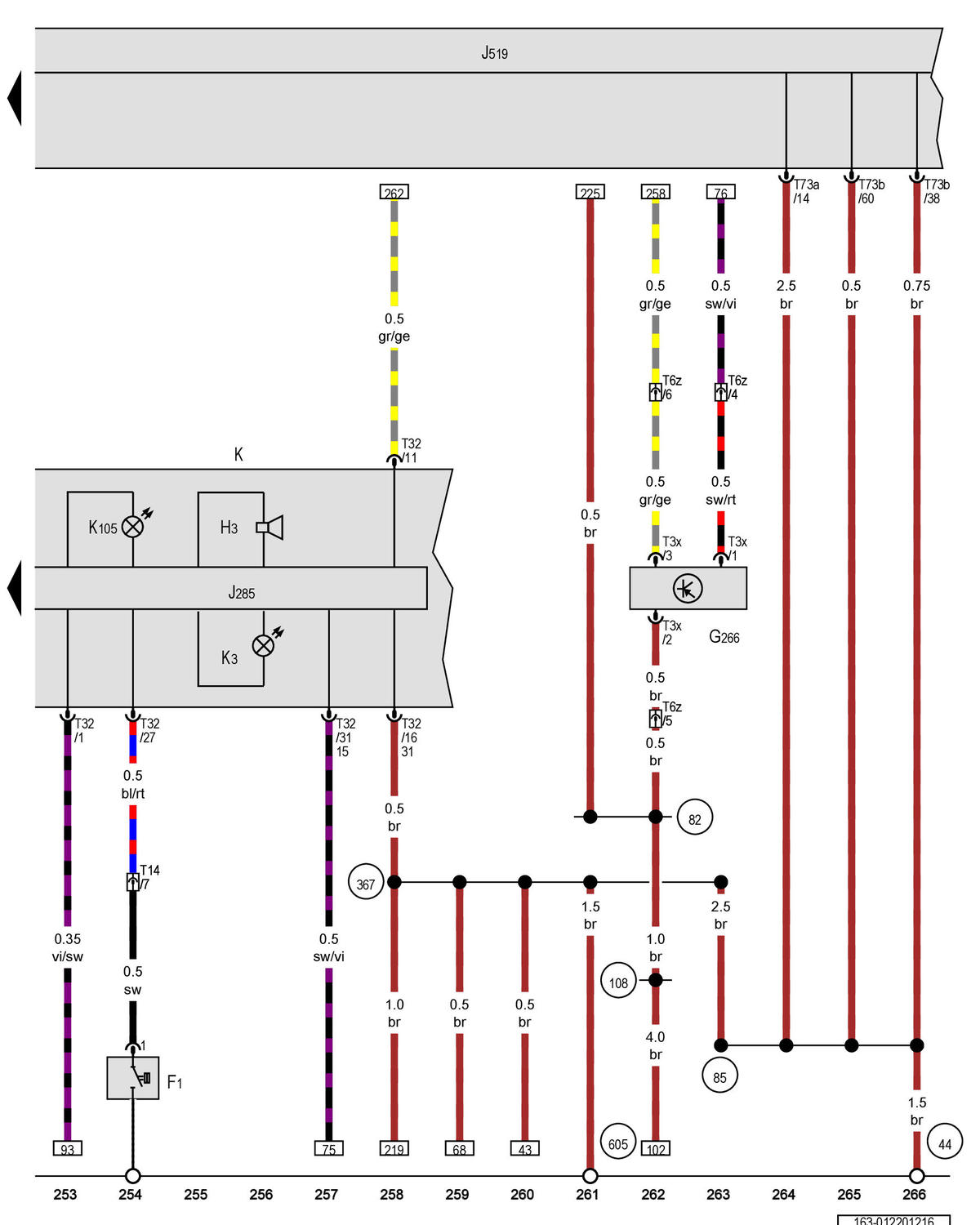

Oil Pressure Switch, Oil Level Thermal Sensor, Instrument Cluster Control Module, Vehicle Electrical System Control Module, Low Fuel Level Indicator Lamp

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

F1

Oil pressure switch

G266

Oil level thermal sensor

H3

Warning buzzer and tone

J285

Instrument cluster control module

J519

Vehicle electrical system control module

K

Instrument cluster

K3

Oil pressure indicator lamp

K105

Low fuel level indicator lamp

T3x

3-pin connector

T6z

6-pin connector, near the left headlamp

T14

14-pin connector

T32

32-pin connector

T73a

73-pin connector

T73b

73-pin connector

Ground connection on A-pillar, lower left

Ground connection 1 (in left front wiring harness)

Ground connection 1 (in engine compartment wiring harness)

Ground connection 2 (in left front wiring harness)

Ground connection 2 (in main wiring harness)

Ground connection on upper steering column
