Overview - Rear Door Window

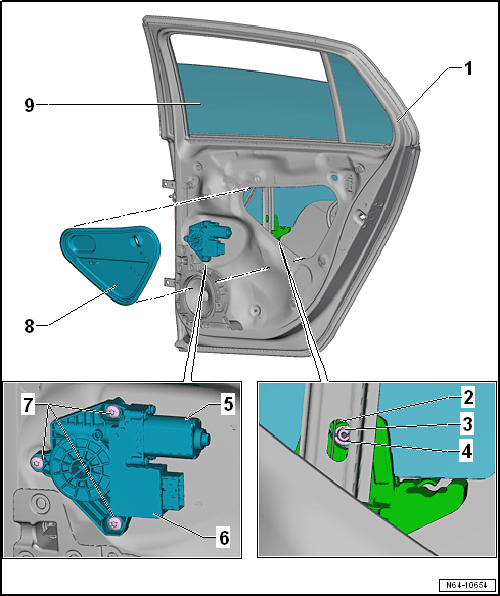

Fig 1: Exploded View Of Rear Door Window

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Rear Door
Window Regulator
- Removing and installing. Refer to WINDOW REGULATOR, REMOVING AND INSTALLING .
Expanding Pin
- Together with the spreader plug for attaching the door window
Spreader Plug
- Together with the expanding pin for attaching the door window
Window Regulator Motor
- Removing and installing. Refer to LEFT AND RIGHT REAR WINDOW REGULATOR MOTOR -V26- / -V27-, REMOVING AND INSTALLING .
Door Control Module
Bolt
- 3 Nm
- Quantity: 3
Door Inner Cover
- Removing and installing. Refer to DOOR INNER COVER, REMOVING AND INSTALLING .
Door Window
- Removing and installing. Refer to REAR DOOR WINDOW, REMOVING AND INSTALLING .
