Center Engine Compartment Seam Sealing

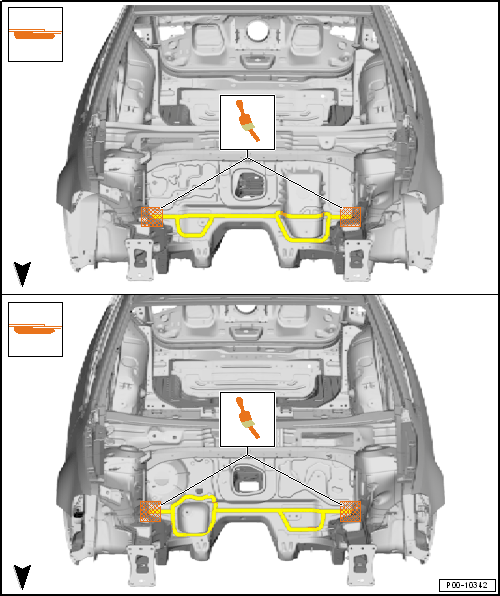

Upper illustration, LHD view

Lower illustration, RHD view

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. -Coarse Seam Sealing
   • For coarse seam sealing, the projection of the sealing compound must be a total of 20 mm and a height of 2 mm must be ensured.
2. -Spreading the Seal
   • After applying the sealant in the designated area it must be spread.
     NOTE:

     When spreading the sealed seam pay attention that the protected areas do not become uncovered and that enough PVC layer covers the area.
