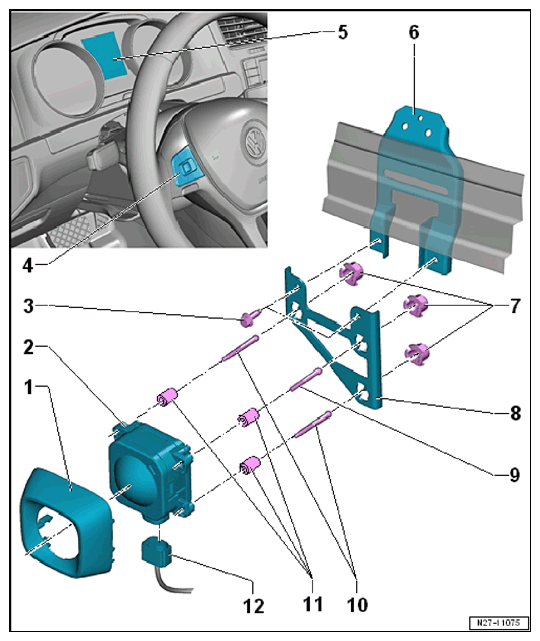

Component Location Overview- Adaptive Cruise Control (ACC), Version 1
- Radar Sensor Trim
- Distance Regulation Control Module - J428-
- Removing and installing. Refer to Control Module for Adaptive Cruise Control, Removing and Installing
- Calibrating. Refer to Adaptive Cruise Control, Calibrating Note
- Bolt
- 8 Nm.
- Quantity: 2
- Adaptive Cruise Control Button - E357-
- Is integrated in the multifunction steering wheel.
- Removing and installing. Refer to Communication Right/Left Multifunction Buttons On Steering Wheel - E441-/-E440-, Removing and Installing.
- Instrument Cluster - KX2-
-->
- With Instrument Cluster Control Module - J285-
- Removing and installing. Refer to Instrument Cluster Removing and Installing.
- Front Bumper Carrier
- Quick Release Fastener
- Retaining Plate
- Removing and installing. Refer to Control Module for Adaptive Cruise Control, Removing and Installing
- Adjusting Screw
- Screw serves as the pivot point
- Screw adjustment dimension must not be changed according to the adjustment.
- Measure the adjustment dimension and if necessary adjust. Refer to appropriate service information .
- Adjusting Screw
- To adjust the Distance Regulation Control Module - J428-
- Quantity: 2
- Measure the adjustment dimension and if necessary adjust. Refer to appropriate service information. .
- Clip
- Must always be replaced if the adjusting screws -item 9- and -item 10- were removed.
- Replacing. Refer to appropriate service information. .
- Connector
