Component Location Overview - Control Modules

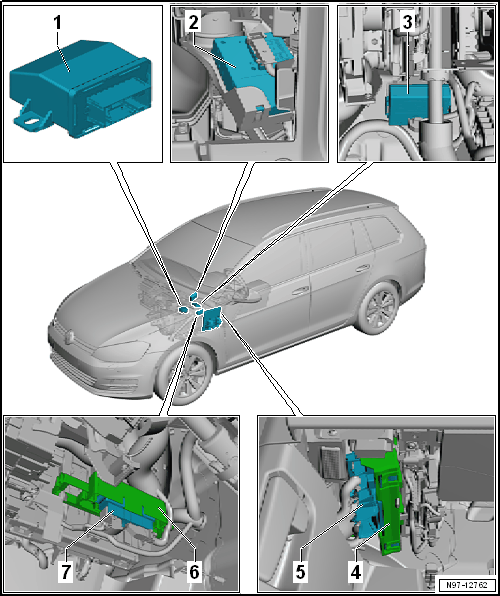

GWWN97-12762Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Headlamp Range Control Module -J431- / Cornering Lamp and Headlamp Range Control Module -J745-
    • Overview
  2. Access/Start System Interface -J965-
    • Overview
  3. Data Bus On Board Diagnostic Interface -J533-
  4. Bracket
  5. Vehicle Electrical System Control Module -J519-
  6. Bracket
    • For Parking Aid Control Module -J446- or Parallel Parking Assistance Control Module -J791-
  7. Parking Aid Control Module -J446- or Parallel Parking Assistance Control Module -J791-
