Window Guide, Removing And Installing: Installing

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2020 Audi S4, 2020 Audi A4 Quattro, 2020 Audi A4, 2019 Audi S4, and 2019 Audi A4 allroad. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order of removal and Note The Following:

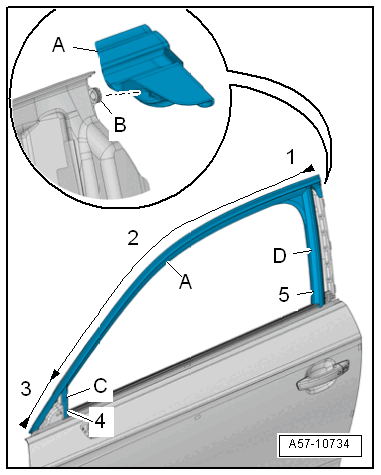

-- Install the window guide -A- on the door flange in the sequence -1 through 5-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Step
1.	-- Position the upper edge of the window guide on the B-pillar door flange and push it forward in the direction of travel.
	The guide pin -B- must engage in the window guide mount.
2.	-- Install the window guide on the door flange.
3.	-- Align the window guide on the A-pillar guide rail.
4.	-- Insert the seal -C- into the guide rail.
5.	-- Install the B-pillar trim (refer to B-PILLAR DOOR TRIM, REMOVING AND INSTALLING, FRONT ) and insert the seal -D- into the guide rail.
