Radio/Navigation System Frame, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

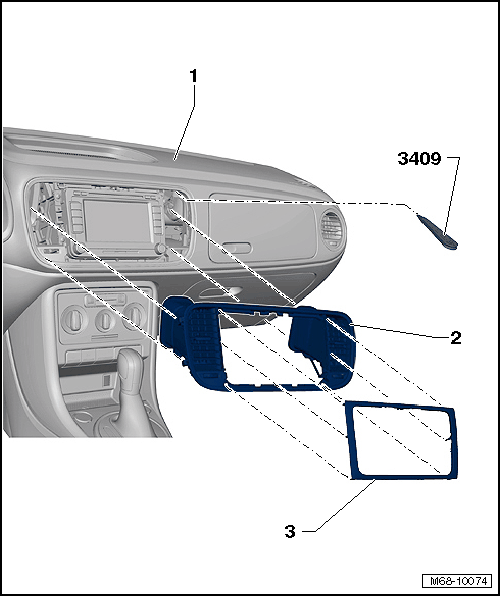

Fig 1: Identifying Instrument Panel Center Trim And Infotainment Trim

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Infotainment trim -3- from the mounts in the center console trim panel -2- near the retainer using the : 3409 .

-- Remove the instrument panel center trim -2- from the instrument panel mounts -1- near the retainers using the : 3409 .
