General Information - Infotainment System, Composition Media
WARNING: This page is about a different variant/trim than selected.
Information Electronics Control Module 1 J794 / Front Information Display Control Head J685

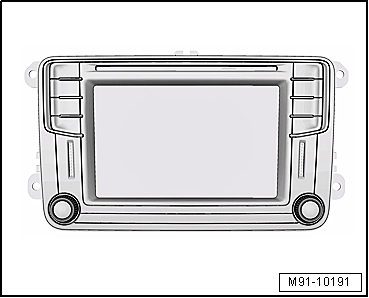

Fig 1: Information Electronics Control Module 1 -J794- /Front Information Display Control Head -J685-
Composition Media Infotainment System Characteristics
- 5.8 inch multicolor display with touch screen (towing recognition)
- 4 x 20 W output
- RDS FM/AM radio
- Integrated diversity function
- CD drive
- SD card reader with one SD card slot
- Advanced Audio Coding (AAC)
- MP3 playback function
- WMA
- Support for multifunction steering wheel
- Vehicle menu support
- OBD including speaker diagnosis
- Speed-dependent volume increase
- Speed-dependent dynamic compression (GADK)
Optional
- Integrated DAB/SDARS tuner for digital radio reception
- AUX IN via a jack plug
- USB Connection
- iPod® connection
- BLUETOOTH® hands-free calling
- Voice recognition system
- CVBS (rearview camera)
- App-connect (parallel illustration and approved operation contents from the connected smartphone/tablet PC on the infotainment system display)
NOTE:
Familiarity with the function and operation of the Infotainment system is needed if there are complaints.
Refer to the Owner's Manual for additional information.
The connection to other vehicle systems is established through the CAN Bus (Infotainment) and the Data Bus on Board Diagnostic Interface -J533-.
Fault Finding is performed using the Guided Fault Finding on the Vehicle Diagnostic Tester.

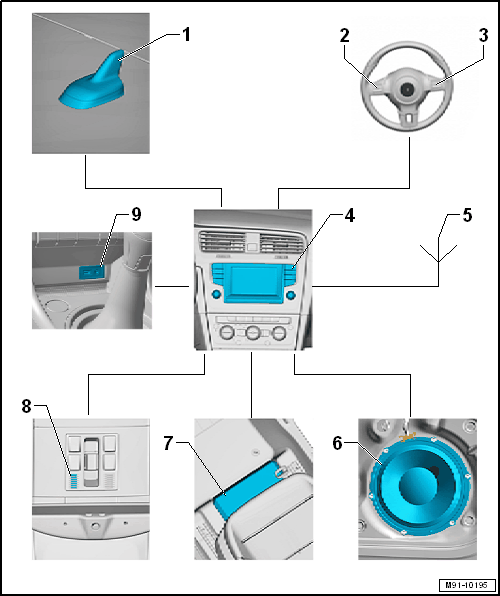

Infotainment System Overview
- Roof Antenna -RX5-
- Refer to ANTENNA SYSTEMS for more information.
- Left Multifunction Buttons on Steering Wheel -E440-
- Refer to MULTIFUNCTION STEERING WHEEL for more information.
- Right Multifunction Buttons on Steering Wheel -E441-
- Refer to MULTIFUNCTION STEERING WHEEL for more information.
- Information Electronics Control Module 1 -J794-
- Connected with Front Information Display Control Head -J685-
- Window Antennas
- Refer to ANTENNA SYSTEMS for more information.
- Sound System
- Refer to SOUND SYSTEM for more information.
- Digital Sound System Control Module -J525-
- Refer to SOUND SYSTEM for more information.
- Telephone Microphone -R38-
- Refer to TELEPHONE SYSTEM for more information.
- External Audio Source Connection -R199-
- Refer to EXTERNAL MULTIMEDIA DEVICE CONNECTION for more information.
