Overview - Rear Side Window, Convertible

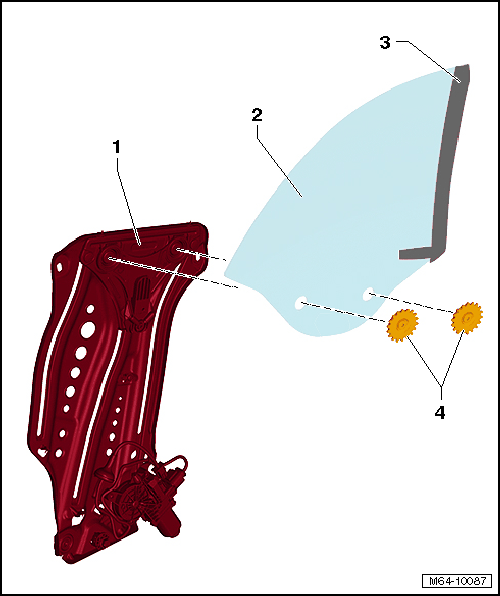

Fig 1: Identifying Side Window Components Overview (Convertible)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Window Regulator
- Removing and Installing . Refer to WINDOW REGULATOR, REMOVING AND INSTALLING .
Side Window
- Removing and Installing . Refer to REAR SIDE WINDOW, REMOVING AND INSTALLING, CONVERTIBLE .
Seal
- Cannot be replaced separately
Bolt
- 9 Nm
- Quantity: 2
