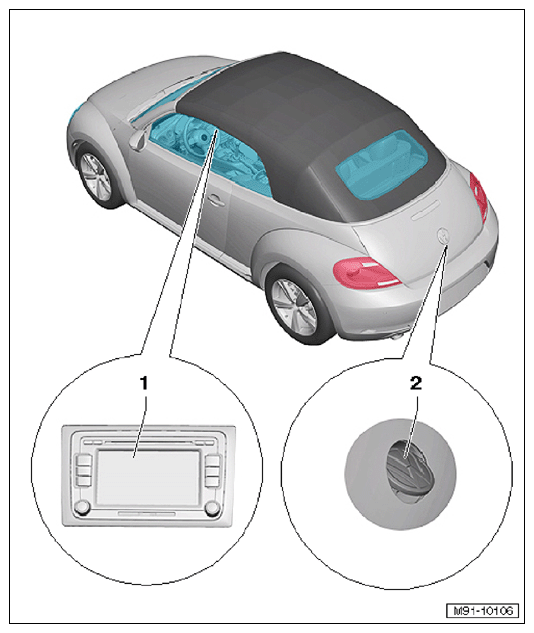

8.2 Component Location Overview - Rearview Camera System

1. Information Electronics Control Module 1 - J794-
   • With Front Information Display Control Head -J685-
   • Inside the center of the instrument panel
   • Refer to
2. Rearview Camera - R189-
   • In the rear lid pivoting emblem
   • Removing and installing the pivoting emblem. Refer to Body Exterior (Rear Lid; Actuator, Removing and Installing.)
