Comfort System Central Control Module -J393-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2021 Audi e-tron Quattro and 2019 Audi e-tron Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the luggage compartment left trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

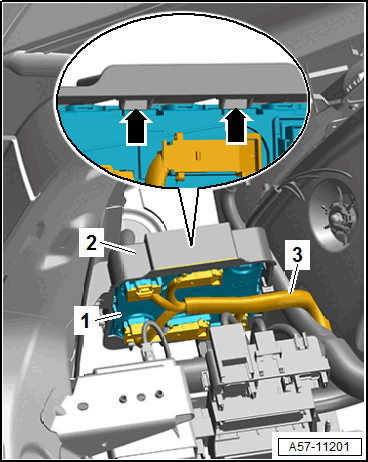

-- Free up the wiring harness -3-.
-- Release the retainers -arrows- and guide the central control module -1- out of the mount -2-.

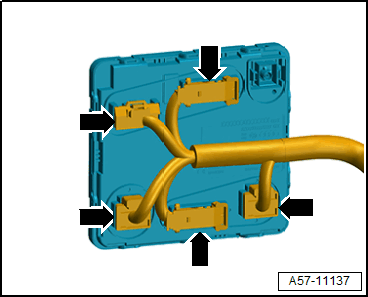

-- Disconnect the connectors -arrows-.
