Control Arm, Removing And Installing: Installing

WARNING: This page is about a different car, the 2021 Audi e-tron Quattro and 2019 Audi e-tron Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Lower Ball Joint

Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal and note the following:

-- When reusing the ball joint, clean any remaining locking compound residue off the pin threads.

-- Bring the control arm with the ball joint into the installation position.

CAUTION:

There is a risk of damage occurring in the threaded connection area on the wheel bearing housing if handled incorrectly.

- Pay attention to the installation position.

Insert the ball joint -1- into the wheel bearing housing -2- up to the contact surface -arrows-.

-- Install the threaded connections for the components with bonded rubber bushings only until the stop, but do not tighten yet.

Bonded rubber bushings have a limited range of rotation. Only tighten the threaded connections for the suspension when the vehicle is at standard vehicle height.

-- Raise the wheel bearing to the standard vehicle height. Refer to WHEEL BEARING AT STANDARD VEHICLE HEIGHT, LIFTING VEHICLES WITH AIR SUSPENSION .

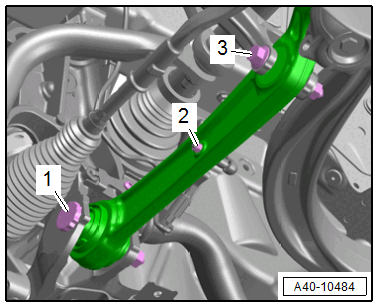

-- When tightening the threaded connection -1-, the control arm must be pressed toward the inside of the vehicle.

Courtesy of AUDI OF AMERICA, LLC

Overview table for when an axle alignment is needed. Refer to NEED FOR AXLE ALIGNMENT, EVALUATING .
Readapt the standard vehicle height. Refer to STANDARD VEHICLE HEIGHT, READAPTING .
