Multimedia System Display Unit Support, Removing And Installing: Removing
WARNING: This page is about a different car, the 2021 Audi e-tron Quattro and 2019 Audi e-tron Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the multimedia system display unit.

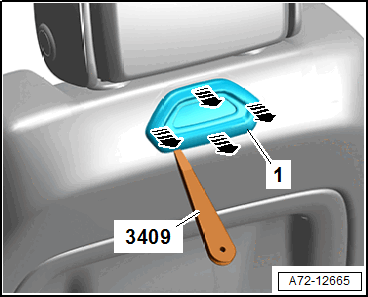

-- Unclip the trim -1- using the :3409 in direction of -arrows- and remove.
-- Remove the front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .
-- Secure the front seat to the :VAS6136 . Refer to FRONT SEAT, MOUNTING ON FIXTURE FOR SEAT REPAIR .
-- Remove the backrest seat cover and cushion. Refer to BACKREST COVER AND CUSHION, REMOVING AND INSTALLING .

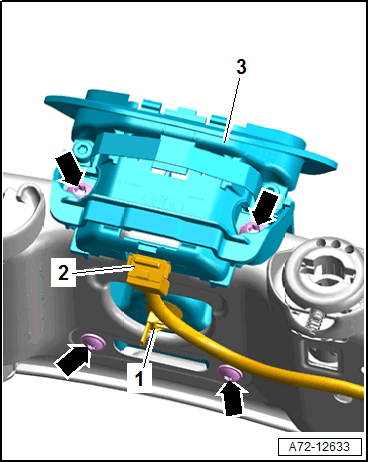

-- Unclip the bracket -1- for the electrical wiring at the support -3-.
-- Unclip the connector -2- at the support.
-- Remove the bolts -arrows- and the support.
