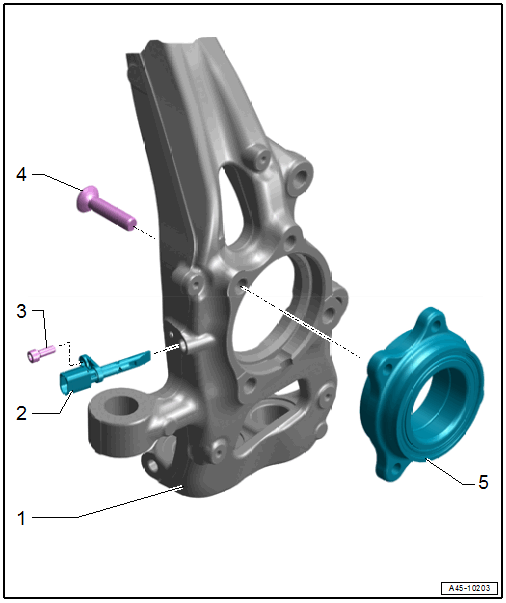

Overview - Front Axle Speed Sensor
WARNING: This page is about a different car, the 2021 Audi e-tron Quattro and 2019 Audi e-tron Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Wheel Bearing Housing
- Clean the inner surface of the hole before inserting the speed sensor.
- Front Speed Sensor
- Right Front ABS Wheel Speed Sensor -G45-
- Left Front ABS Wheel Speed Sensor -G47-
- Refer to RIGHT AND LEFT FRONT ABS WHEEL SPEED SENSOR -G45- / -G47-, REMOVING AND INSTALLING
- Coat the speed sensor all around with Grease :G 000 650 before inserting.
- Bolt
- 9 Nm
- Bolt
- Tightening specification. Refer to OVERVIEW - WHEEL BEARING .
- Wheel Bearing
- With integrated ABS sensor ring
- Refer to ABS SENSOR RING, CHECKING
