Special Tools

Special tools and workshop equipment required

• Refrigerant Sockets :T10364A

  Courtesy of AUDI OF AMERICA, LLC

• Cooling System Tester :VAG1274B  (and corresponding adapters)
  Fig 1: Cooling System Tester VAG1274B

  Courtesy of AUDI OF AMERICA, LLC
• Suction Feed Spray Gun :VAG1538  (Refer to Parts Information for currently available suction feed spray guns)
• Suction Feed Spray Gun - Probe for Evaporator (Straight) :VAG1538/5  (short version approximately 500 mm, bent to specification for this vehicle) -A- or Suction Feed Spray Gun - Probe for Evaporator Cleaning, Curved :VAG1538/6  (medium version approximately 600 mm pre-bent) -A-. Refer to the Parts Information for the sensors that can be delivered currently.

  Courtesy of AUDI OF AMERICA, LLC

• Torque Wrench 1783 - 2-10Nm :VAG1783
  Fig 2: Identifying Torque Wrench

  Courtesy of AUDI OF AMERICA, LLC
• Wiring Harness Repair Kit : VAS1978B
  Fig 3: Identifying VAS 1978 B

  Courtesy of AUDI OF AMERICA, LLC
• Spring Clip Pliers :VAS6499
  Fig 4: Identifying Hose Clip Pliers

  Courtesy of AUDI OF AMERICA, LLC
• Engine Bung Set :VAS6122
  Fig 5: Engine Bung Set

  Courtesy of AUDI OF AMERICA, LLC
• Refrigerant Circuits Adapter Set 1 - Adapter 3 :VAS6338/3  and Refrigerant Circuits Adapter Set 1 - Adapter 12 :VAS6338/12  from Refrigerant Circuits Adapter Set 1 :VAS6338/1

  Courtesy of AUDI OF AMERICA, LLC

• Refrigerant Circuits Adapter Set - Shut-Off Valve :VAS6338/42

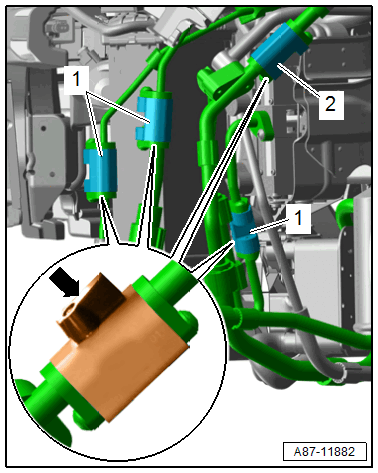

• Refrigerant Circuit Adapter Set - Adapter :VAS6338/47  (with three Refrigerant Circuit Adapter Set - Adapter :VAS6338/47-1  -1- and one Refrigerant Circuit Adapter Set - Adapter :VAS6338/47-2  -2-).

  Courtesy of AUDI OF AMERICA, LLC

• Hose Clamps - Up To 25 mm :3094
  Fig 6: Hose Clamps

  Courtesy of AUDI OF AMERICA, LLC
• Not Illustrated:
• Ultrasound A/C Cleaner (for example the Ultrasound A/C Cleaner :VAS6189B  ). Refer to the Parts Information for the cleaning device currently available.
• Ultrasound A/C Cleaner - Airco-Clean Fluid :VAS6189/1
