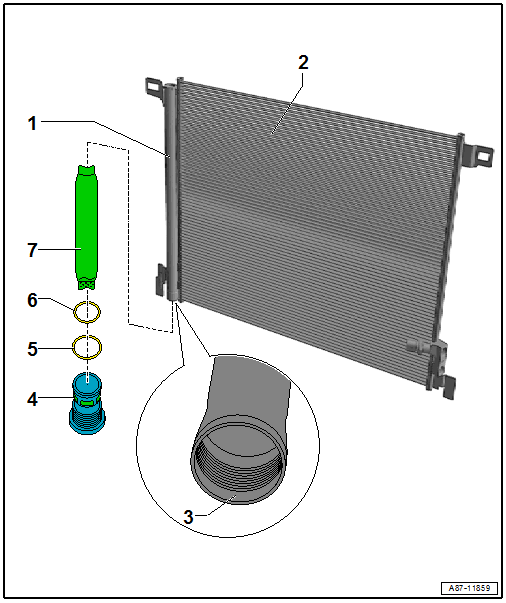

Overview - Condenser
WARNING: This page is about a different car, the 2021 Audi e-tron Quattro and 2019 Audi e-tron Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Receiver/Dryer
- Receiver/dryer is a component of the condenser
- Check the receiver/dryer; if there is contamination, clean the refrigerant circuit or replace the condenser, if necessary. Refer to A/C System, General Information or REFRIGERANT CIRCUIT, CLEANING .
- Condenser
- Refrigerant Lines, Removing and Installing. Refer to REFRIGERANT LINES, DISCONNECTING AND CONNECTING AT CONDENSER .
- Removing and Installing. Refer to CONDENSER, REMOVING AND INSTALLING .
- Sealing Surfaces in the Receiver/Dryer
- Check for contamination or damage
- Plug with Filter Element
- 2 Nm
- Replace after removing.
- Removing and Installing. Refer to DESICCANT BAG/DRYER CARTRIDGE, REMOVING AND INSTALLING .
- O-Ring
- Replace after removing. Refer to REFRIGERANT CIRCUIT SEALS .
- There are different versions. Refer to the Parts Information.
- Coat lightly with refrigerant oil before installing. Refer to REFRIGERANT CIRCUIT SEALS .
- O-Ring
- Replace after removing. Refer to REFRIGERANT CIRCUIT SEALS .
- There are different versions. Refer to the Parts Information.
- Coat lightly with refrigerant oil before installing. Refer to REFRIGERANT CIRCUIT SEALS .
- Desiccant Bag
- There are different versions. Refer to the Parts Information.
- Removing and Installing. Refer to DESICCANT BAG/DRYER CARTRIDGE, REMOVING AND INSTALLING .
