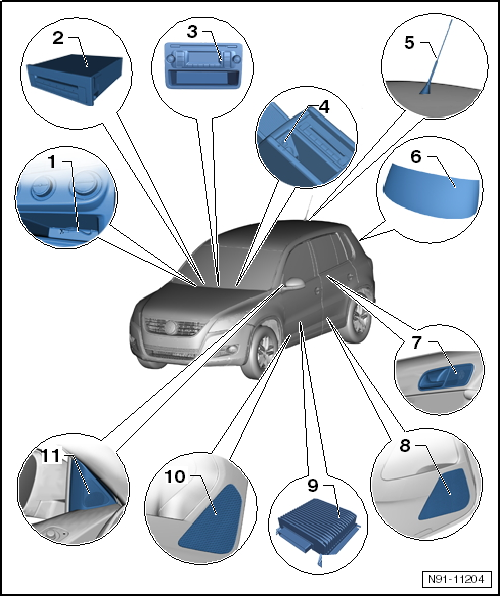

Component Overview
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
- External Multimedia Device Interface -R215-
- Installed in the center console
- For more information regarding the external multimedia device interface refer to EXTERNAL MULTIMEDIA DEVICE INTERFACE -R215-
- Optional installation of "CD changer" or "external multimedia device interface". Both systems are not available together because they both use the same installation location.
- CD Changer -R41-
- 6 disc CD changer
- Located inside the glove compartment
- Removal and installation of the CD changer. Refer to CD CHANGER .
- Optional installation of "CD changer" or "external multimedia device interface". Both systems are not available together because they both use the same installation location.
- Radio -R-
- External Audio Source Connection -R199-
- Telephone/Navigation System (GPS)/Auxiliary Heater Antenna -R66-
- Located on the roof at the back of the vehicle
- Refer to ANTENNA SYSTEMS for more information regarding the different antenna systems.
- Window Antenna
- Installed in the rear window, for radio reception with antenna diversity
- Antenna for digital radio reception, DAB, also optional
- Refer to ANTENNA SYSTEMS for more information regarding the different antenna systems.
- Right Rear Treble Speaker -R16- and Left Rear Treble Speaker -R14-
- Installed in door trim of left and right rear doors
- Refer to SPEAKERS for more information regarding the different speaker systems.
- Right Rear Bass Speaker -R17- and Left Rear Bass Speaker -R15-
- Installed in door trim of left and right rear doors
- Refer to SPEAKERS for more information regarding the different speaker systems.
- Amplifier -R12-
- Installed under the left front seat
- Refer to SOUND SYSTEM AMPLIFIER for more information regarding the amplifier.
- Right Front Midrange Speaker -R104- and Left Front Midrange Speaker -R103-, Right Front Bass Speaker -R23- and Left Front Bass Speaker -R21-
- Installed in door trim of left and right front doors
- Midrange speakers are only installed in conjunction with sound system
- The midrange speaker and the bass speaker are a single unit.
- Only the bass speaker is installed here when there is no sound system. Midrange frequencies play through the bass and treble speakers.
- Refer to SPEAKERS for more information regarding the different speaker systems.
- Right Front Treble Speaker -R22- and Left Front Treble Speaker -R20-
- Installed in triangle window of left and right front doors
- Refer to SPEAKERS for more information regarding the different speaker systems.
