Overview - Seat Position Sensor

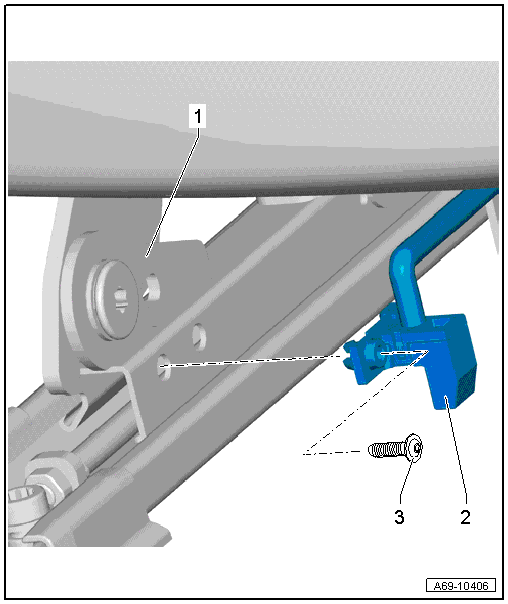

Fig 1: Exploded View Of Seat Position Sensor Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Seat Pan Lower Frame
Seat Position Sensor
- Driver side: Driver Seat Position Sensor -G553-
- Front passenger side: Front Passenger Seat Position Sensor -G554-
- Removing and installing. Refer to SEAT POSITION SENSOR, REMOVING AND INSTALLING .
Bolt
- 1.2 Nm
