Update Programming, DTCS P039B, P03A5, P03AF, P03B9 Stored In The ECM Fault Memory (GROUP 01, NO. 16-26)

Publication date: 2016-12-20
Reference number: GROUP 01, NO. 16-26
Supersedes refnos: 2045925

UPDATE PROGRAMMING, DTCS P039B, P03A5, P03AF, P03B9 STORED IN THE ECM FAULT MEMORY

TECHNICAL SERVICE BULLETIN

Reference Number(s): GROUP 01, NO. 16-26 (2045925), Date of Issue: December 20, 2016

VOLKSWAGEN:	2016 - 2017 Golf, Golf SportWagen
GROUP:	01 - On-Board Diagnostic

APPLICABLE MODELS AND YEARS

Model(s)	Year	Eng. Code	Trans. Code	VIN Range From	VIN Range To
Golf	2016 - 2017	1.8T (CXBA, CXBB)	All	AU_GM000001*	AU_HM017228
Golf SportWagen	2016 - 2017	1.8T (CXBA, CXBB)	All	AU_GM000001*	AU_HM510346

CONDITION

01 16 26 December 20, 2016 2045925

Update Programming, DTCs P039B, P03A5, P03AF, P03B9 stored in the ECM Fault Memory

One or more of the following fault codes may be stored in the ECM Fault Memory:

DTC DESCRIPTION

DTC	Description
P039B	Cylinder 1 Pressure Too High
P03A5	Cylinder 2 Pressure Too High
P03AF	Cylinder 3 Pressure Too High
P03B9	Cylinder 4 Pressure Too High

NOTE: DO NOT diagnose or replace any components due to faults P039B, P03A5, P03AF, P03B9 before performing the update function as explained in this bulletin.

There are EXCLUDED vehicle VINs listed in the Service portion of this bulletin. Ensure the vehicle you are servicing applies to this technical bulletin content before continuing .

TECHNICAL BACKGROUND

Current ECM software causing erroneous faults.

PRODUCTION SOLUTION

Improved software implemented into production.

SERVICE

*Please note that following vehicles cannot be updated using this bulletin*

VEHICLE INFORMATION

Golf
3VW917AU9GM005572	3VW917AU8GM005854
Golf SportWagen
3VWC17AUXGM502894	3VWC17AU4GM502955
3VWC17AU3GM502896	3VWC17AU0GM502970
3VWC17AU1GM502900	3VWC17AU4GM503099
3VWC17AU3GM502932	3VWC17AUXGM503107
3VWC17AU7GM502934

Update-Programming Procedure:

Tip:

To Update-Programming using SVM, review and follow instructions in Technical Bulletin Instance 2014603 "Software Version Management".

The SVM Process must be completed in its entirety so the database receives the update confirmation response. A warranty claim may not be reimbursed if there is no confirmation response to support the claim.

NOTE: Prior to launching the ODIS service diagnostic applications and starting control module update process, confirm tester screen saver and power settings in accordance with Special Tools and Equipment - Service Information Circular # VVT-12-02. Failure to do so may result in the tester entering power save mode during data transfer, and subsequent control module failure.
When using a VAS 6150/X or 6160/X tester in conjunction with a VAS 5054A wireless transmitter head for a flash procedure, please connect a USB cable between the transmitter head and the tester. Failure to do so may lead to errors during the flash procedure.
VAS tools must only be used with their power adapters plugged in. Under no circumstances should they be used on battery power alone during the programming procedure.

Critical Warning: : The Midtronics battery charger must be connected to the vehicle battery for the duration of the programming, to ensure the battery state of charge remains above 12.5 volts during the update process. If the battery drops below 12.5 volts, the programming could fail which may result in damage to the control module. Control modules damaged by inadequate voltage will not be covered under the warranty policy. The technician should verify the vehicle voltage prior to starting the update process, and should monitor the voltage for the duration of the update.

WARNING: Radiator Fan(s) may cycle ON high speed during the Update Process! There is a risk that personal injury may result if contact is made with spinning fan blades.
Keep hands and all objects away from Radiator Fan(s) during Update Process!

Update the Engine Control Module using the SVM Unit code as listed in the TABLE below:

SOFTWARE INFORMATION

Model	Engine	Old Software Part No.	Old Software Version	New Software Part No.	New Software Version (or higher)	SVM Unit Code
2016 Golf/Golf Sportwagen	CXBA CXBB	8V0 906 264 F	0001 0002 0003 0004	8V0 906 264 K	0003	3EB1
2017 Golf/Golf SportWagen	CXBA CXBB	8V0 906 264 K	0002	8V0 906 264 K	0003	3EB1

The procedure can be found in GFF under Functions/Component Selection, Software Version Management, Adapting Software.

Tip:

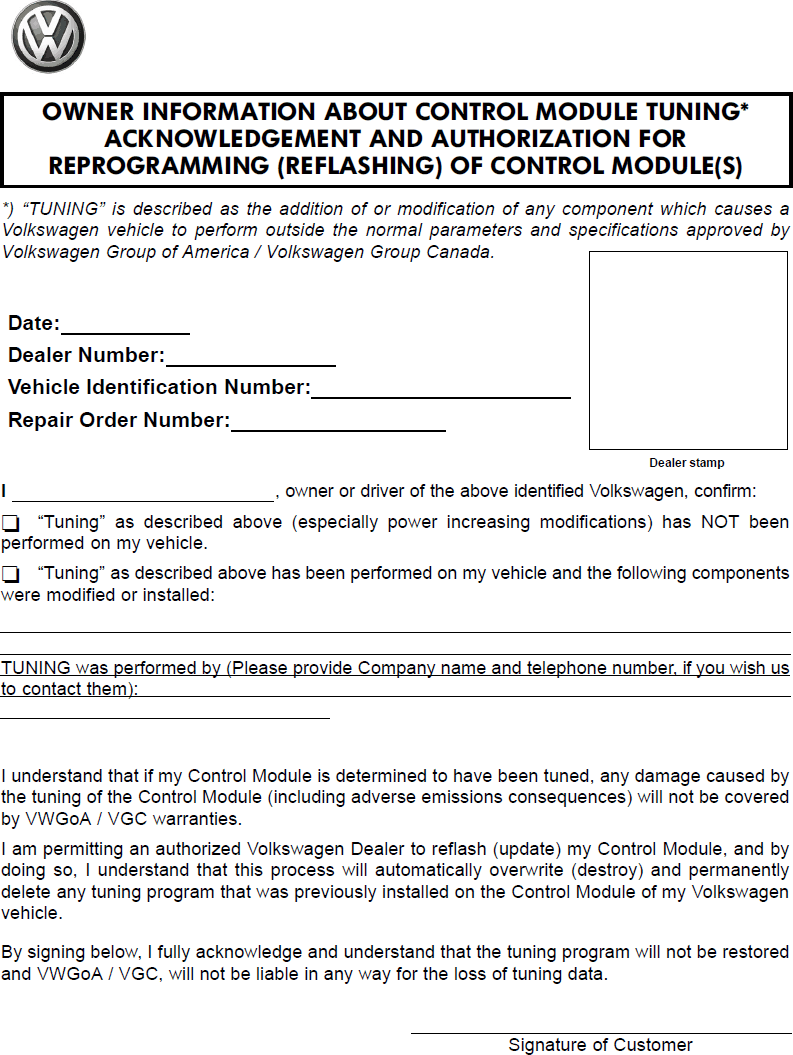

Ensure attached ECM/TCM Tuning Form has been completed and signed by customer as required in SVM Technical Bulletin Instance 2014603.

WARRANTY

WARRANTY INFORMATION

To determine if this procedure is covered under Warranty, always refer to the Warranty Policies and Procedures Manual ⁽¹⁾

Model(s)

Year

Eng. Code

Trans. Code

VIN Range From

VIN Range To

Golf

2016 - 2017

1.8T (CXBA, CXBB)

All

AU_GM000001*

AU_HM017228

Golf SportWagen

2016 - 2017

1.8T (CXBA, CXBB)

All

AU_GM000001*

AU_HM510346

SAGA Coding

Claim Type:

Use applicable Claim Type ⁽¹⁾

Service Number:

Damage Code

HST

Damage Location (Depends on Service No.)

2470

0039

Use applicable when indicated in Elsa (L/R)

Parts Manufacturer

Golf, Golf SportWagen

3ME ⁽²⁾

Labor Operation ⁽³⁾: Charge Battery

27068950 = 10 TU

Labor Operation ⁽³⁾: Update Programming

See GFF Time expenditure

Causal Part: Select Labor Operation

01500000

Diagnostic Time ⁽⁴⁾

GFF Time expenditure

01500000 = 50 TU max.

YES

Road Test

01210004 = 10 TU

YES

Technical Diagnosis

01320000 = 00 TU max.

Claim Comment: Input "As per Technical Bulletin 2045925" in comment section of Warranty Claim.

⁽¹⁾	Vehicle may be outside any Warranty in which case this Technical Bulletin is informational only

⁽²⁾	Code per warranty vendor code policy.

⁽³⁾	Labor Time Units (TUs) are subject to change with ELSA updates.

⁽⁴⁾	Documentation required per Warranty Policies and Procedures Manual.

REQUIRED PARTS AND TOOLS

No special parts required.

TOOL INFORMATION

Tool Description	Tool No.
Midtronics Battery Tester/Charger	InCharge 940 (INC-940) or GRX3000VAS
VAS Diagnostic Tool	VAS6150/x & VAS 6160/X with: ODIS Service with current online updates

ADDITIONAL INFORMATION

All part and service references provided in this Technical Bulletin are subject to change and/or removal. Always check with your Parts Dept. and Repair Manuals for the latest information.

DOCUMENT CONTROL REVISION

Instance Number	Published Date	Version Number	Reason For Update
2045925/1	12/20/16	V011626	Original publication.
