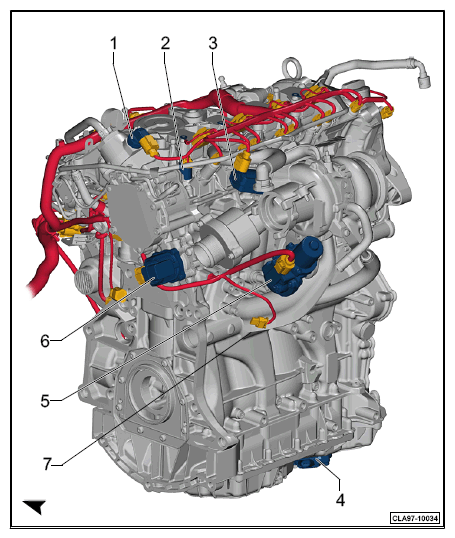

2.0L TFSI, Rear View
- 1 - Fuel pressure regulator valve -N276-
- 2 - Camshaft position sensor 3 -G300-
- 3 - Turbocharger recirculation valve -N249-
- 4 - Oil level thermal sensor -G266-
- 5 - Charge pressure actuator position sensor -G581-
- 5 - Charge pressure actuator -V465-
- 6 - Secondary air system -GX24-
- Secondary air injection solenoid valve -N112-
- 7 - Heater support pump -V488-, not shown.
