Engine Mount, Removing And Installing: Removing

WARNING: This page is about a different car, the 2015 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Disconnect the connector -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bracket -2- with the fuel hoses.

-- Release the retainers with a screwdriver in direction of -arrow- and move the coolant expansion tank to the side.

-- Free up the bracket -3- with the fuel hoses.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

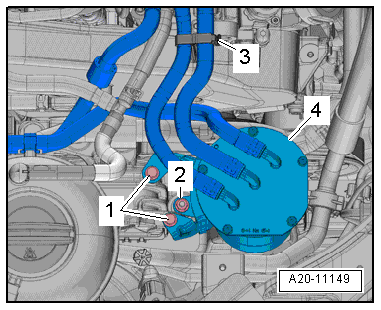

-- Remove the nut -2- and bolts -1-.

-- Move the fuel filter -4- aside.

-- Support the engine and transmission in the installation position. Refer to ENGINE, SUPPORTING IN INSTALLATION POSITION .

-- Slightly pretension the engine/transmission assembly with the spindle, do not lift.

-- Remove the bolts -arrows- and engine mount -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
