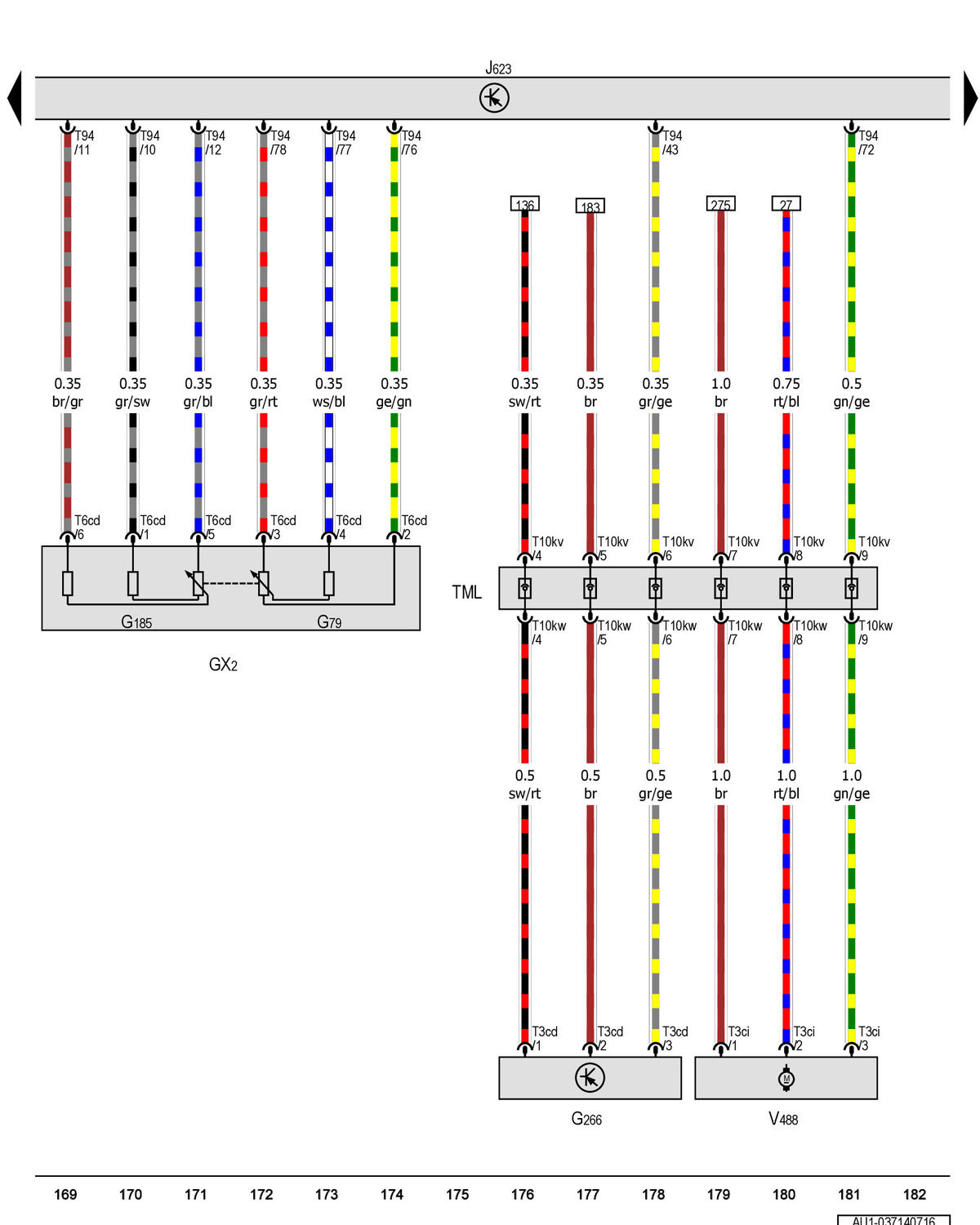

Accelerator Pedal Module, Oil Level Thermal Sensor, Engine Control Module, Heater Support Pump: Notes

GWWAU1-037140716Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
