Electric/Electronic Components And Component Locations, Differential Lock On Rear Final Drive: Notes

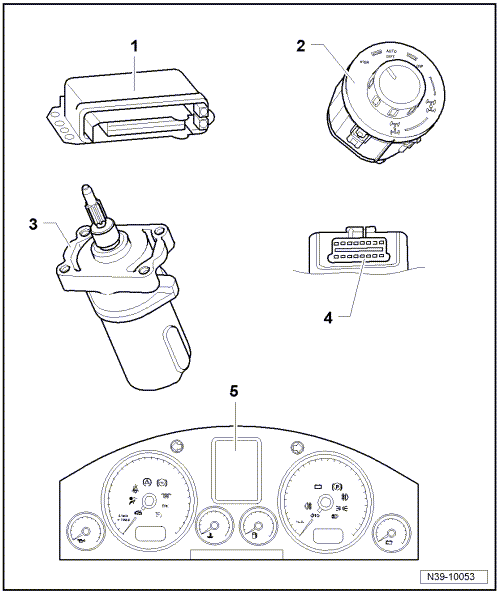

Fig 1: Electrical/Electronic Components And Locations For Rear Final Drive Differential Lock

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Axle Differential Lock Control Module -J647-
- Removing and installing. Refer to Axle Differential Lock Control Module -J647-, REMOVING AND INSTALLING .
Transfer Case Operating Unit -E473-
- Component location. Refer to Fig 2
- Removing and Installing. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .
- Allocation. Refer to the Parts Information.
Differential Lock Motor -V304-
- Component location. Refer to Fig 3
- Removing and installing. Refer to Differential Lock Motor -V304-, REMOVING AND INSTALLING .
- The following components are integrated in the Differential Lock Motor -V304- :
  Motor Temperature Sensor -G407-

  Differential Lock Position Sensor 1 -G460-

  Differential Lock Position Sensor 2 -G461-

  Brake for Differential Lock Motor --
Data Link Connector (DLC)
- Component location. Refer to Fig 4
Multifunction Indicator Inside the Instrument Cluster
- Condition and information regarding the differential lock inside the rear final drive

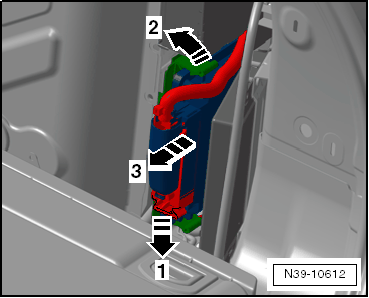

Axle Differential Lock Control Module -J647- Component Location

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The Axle Differential Lock Control Module -J647- is located in the luggage compartment behind the right side trim panel.

Axle Differential Lock Control Module -J647-, removing and installing. Refer to Axle Differential Lock Control Module -J647-, REMOVING AND INSTALLING .

Transfer Case Operating Unit E473 Component Location

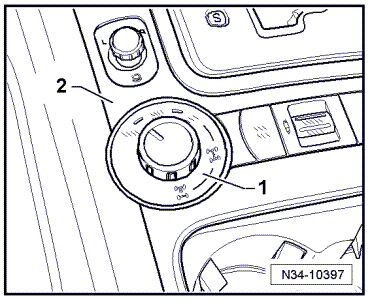

Fig 2: Locating Transfer Case Operating Unit E473

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The Transfer Case Operating Unit -E473- -1- is located in the shifter lever cover -2- in the center console.

Transfer Case Operating Unit -E473-, removing and installing. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .

Differential Lock Motor V304 Component Location

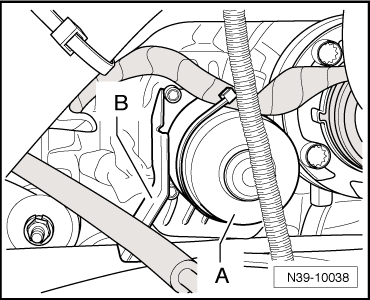

Fig 3: Setting Differential Lock Motor V304 With Holder For Connector Into Rear Final Drive

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The Differential Lock Motor -V304- -A- is located in front of the left flange shaft on the rear final drive.

Differential Lock Motor -V304-, removing and installing. Refer to Differential Lock Motor -V304-, REMOVING AND INSTALLING .

Data Link Connector (DLC)

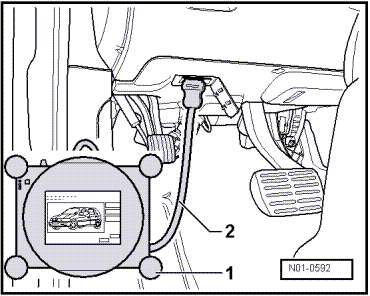

Fig 4: DLC Attached

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Diagnostic connector is located inside a cover in the driver side footwell.
