Spark Plugs, Replacing: Installing

-- Install new spark plugs using Spark Plug Removal Tool 3122 B.

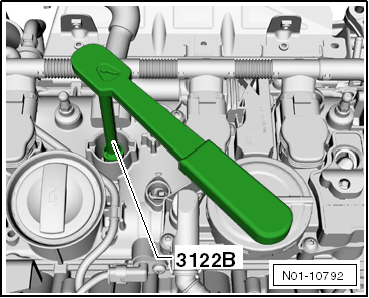

Fig 1: Identifying Spark Plug Wrench -3122 B-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Guide ignition coils with power output stages into cylinder head.

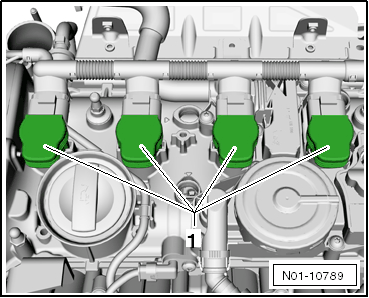

Fig 2: Identifying Ignition Coils With Power Output Stages Guided Into Cylinder Head

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Align ignition coils with power output stages into designated recesses of cylinder head cover.

-- Connect all connectors to ignition coils -arrows-.

-- Press the ignition coils with power output stages onto the spark plugs by hand, until they stop. They must engage audibly.

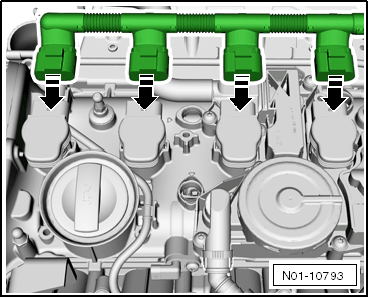

Fig 3: Identifying Ignition Coils

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install engine cover.
