Schematic Overview - Transmission

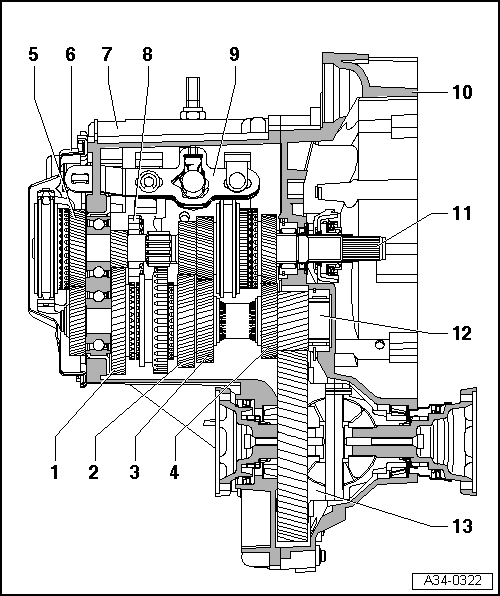

Fig 1: Exploded View Of Transmission (0AF)
GWWA34-0322Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. 1st Gear
  2. 2nd Gear
  3. 3rd Gear
  4. 4th Gear
  5. 5th Gear
  6. Transmission Housing Cover
  7. Transmission Housing
  8. Reverse Drive Gear
  9. Selector Mechanism
    • (Shift forks)
  10. Clutch Housing
  11. Input Shaft
  12. Output Shaft
  13. Differential
