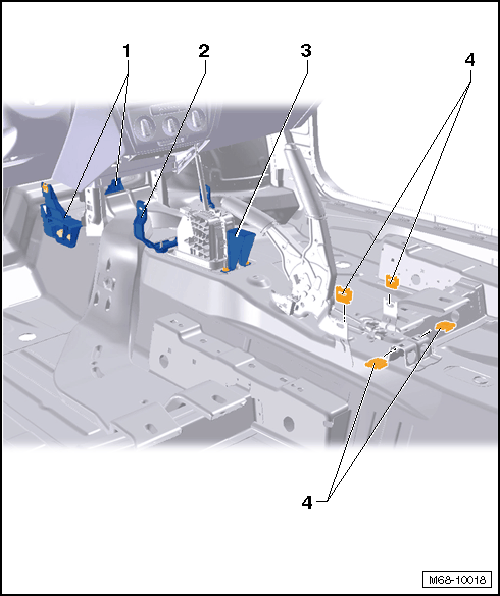

Overview - Securing Bracket

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Front Securing Bracket
- Front Center Console Securing Bracket
- Left and right
- Removing and Installing. Refer to CENTER CONSOLE BRACKET, REMOVING AND INSTALLING, FRONT .
Center Securing Bracket
- Securing bracket in front of the shift mechanism
- Removing and Installing. Refer to CENTER CONSOLE BRACKET, REMOVING AND INSTALLING .
Support
- Center console support behind the shift mechanism
- Removing and Installing. Refer to SUPPORT, REMOVING AND INSTALLING .
Rear Fastener
- Rear center console fastener
  Before assembling the center console, check the spring nuts for damage, and replace if necessary.
