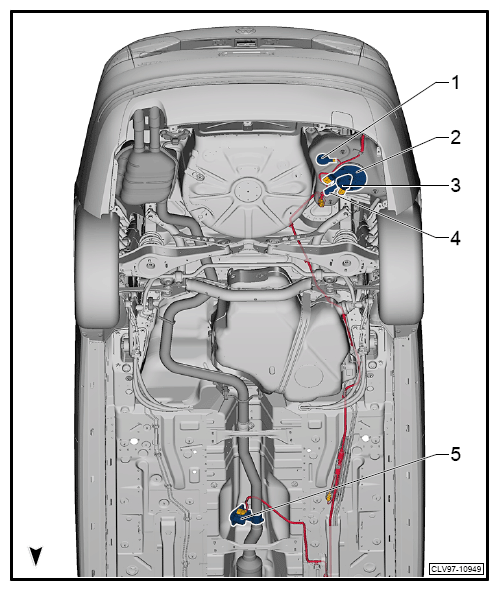

Reducing Agent System
- 1 - Reducing agent quality sensor -G849-
- 2 - Reducing agent metering system delivery unit -GX19-
- 2 - Reducing agent temperature sensor -G685-
- 2 - Reducing agent reservoir sensor -G697-
- 2 - Reducing agent tank heater (heating circuit 1) -Z102-
- 3 -. Reducing agent pump -V437-
- 3 - Reducing agent return flow pump -V561-
- 4 - Reducing agent line heater (heating circuit 2) -Z104-
- 5 - Exhaust door control unit -J883-
