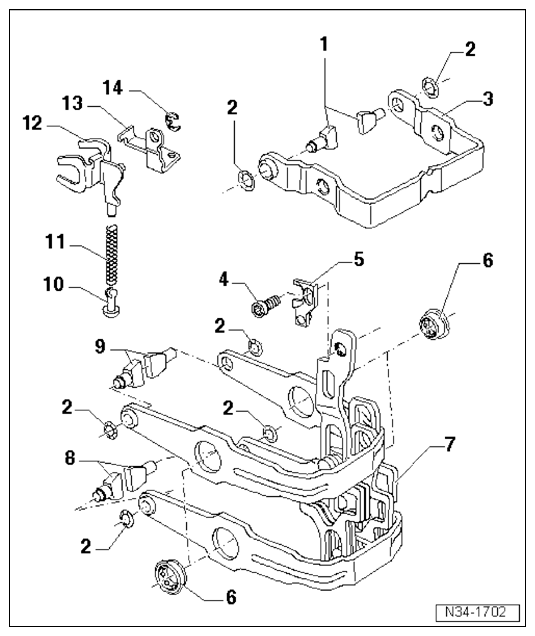

Overview - Shift Forks
WARNING: This page is about a different variant/trim than selected.
NOTE:
- The shift fork group (-Item 7- → Item 7 ) does not need to be disassembled to remove and install shift segments, lock washers and angular contact ball bearings.
- Shift Forks, Servicing. Refer to → " SHIFT FORKS, SERVICING " .
- 5th Gear Shift Segment
- Identification. Refer to → Removing the Lock Washer .
- The shift segment must still rotate easily after the lock washer is installed.
- Lock Washer
- Replace after removing
- Removing. Refer to → Removing the Lock Washer .
- Installing. Refer to → Installing the Lock Washer .
- 5th Gear Shift Fork
- Adjusting. Refer to → 5th Gear Locking Collar, Adjusting .
- Bolt
- 25 Nm
- 5th Gear Shift Jaw
- Angular Contact Ball Bearing
- Quantity: 4
- Removing. Refer to → Removing the Angular Contact Ball Bearing
.
- Bearing Inner Race, Installing in Outer Race. Refer to → Installing the Angular Contact Ball Bearing Inner Race -A- into the Outer Race .
- Installing. Refer to → Installing the Angular Contact Ball Bearing into the Shift Fork .
- Shift Fork Group with Gearshift Rails
- 1st/2nd Gear Shift Segment
- Identification → Removing the Lock Washer .
- The shift segment must still rotate easily after the lock washer is installed.
- 3rd/4th Gear Shift Segment
- Identification → Removing the Lock Washer .
- The shift segment must still rotate easily after the lock washer is installed.
- Glide
- Spring
- Reverse Gear Shift Fork
- Support for the Reverse Gear Shift Fork
- Circlip
