Selector Mechanism, Removing and Installing: Removing
WARNING: This page is about a different variant/trim than selected.
- Determine whether a coded radio is installed. If so, obtain the anti-theft code.
- Disconnect the battery ground cable. Refer to BATTERY, DISCONNECTING AND CONNECTING
- Remove the boot with the shifter knob and noise insulation. Refer to → "GEARSHIFT KNOB, REMOVING AND INSTALLING " .
- Remove the center console and the center console bracket. Refer to appropriate service information. Refer to CENTER CONSOLE Installing.

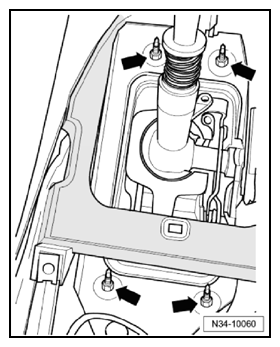

- Remove the nuts -arrows-.
- Remove the complete air filter housing, if it is located above the selector mechanism. Refer to AIR FILTER (CNLA, CRJA) , AIR FILTER (CZCA, CZDA, CZTA) , AIR FILTER (CBPA, CKJA) and AIR FILTER (CPLA, CPPA, CPKA, CPRA)
- Remove the shift cable from the gearshift lever pins.
