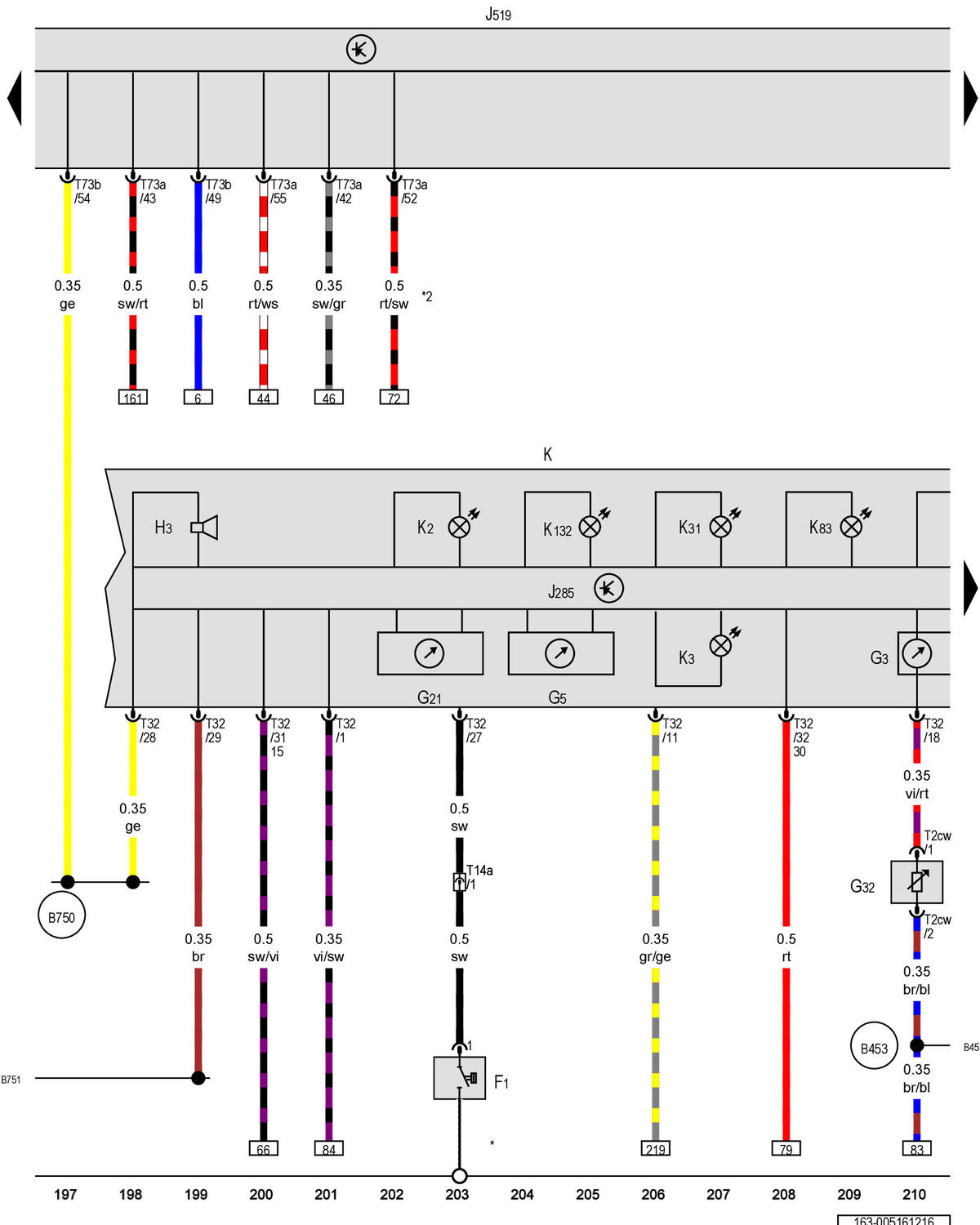

Oil Pressure Switch, Engine Coolant Temperature Gauge, Tachometer, Speedometer, Instrument Cluster Control Module, Vehicle Electrical System Control Module, Generator Indicator Lamp, Cruise Control Indicator Lamp, Electronic Power Control Malfunction Indicator Lamp

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

F1

Oil pressure switch

G3

Engine coolant temperature gauge

G5

Tachometer

G21

Speedometer

G32

Engine coolant level sensor

H3

Warning buzzer and tone

J285

Instrument cluster control module

J519

Vehicle electrical system control module

K

Instrument cluster

K2

Generator indicator lamp

K3

Oil pressure indicator lamp

K31

Cruise control indicator lamp

K83

Malfunction indicator lamp

K132

Electronic power control malfunction indicator lamp

T2cw

2-pin connector

T14a

14-pin connector, near the battery

T32

32-pin connector

T73a

73-pin connector

T73b

73-pin connector

Sensor connection 1 (in main wiring harness)

CAN bus High display and control connection 1

CAN bus Low display and control connection 1

* Ground Supply Via The Housing

*2 From July 2016
