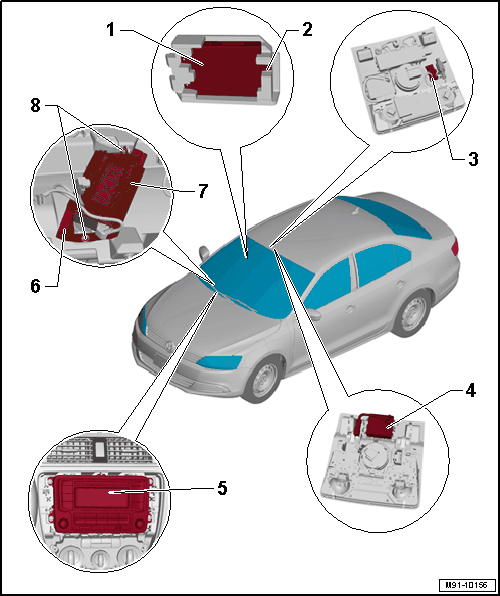

Overview - Telephone System Component Location UMI

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Not Installed
2. Not Installed
3. Telephone Microphone -R38-
   • In the Front Interior Lamp -W1-
   • Removing and installing. Refer to Telephone Microphone -R38-, REMOVING AND INSTALLING .
4. Cellular Telephone Preparation Control Head -E508-
   • In the Front Interior Lamp -W1-
   • Removing and installing. Refer to Cellular Telephone Preparation Control Head -E508-, REMOVING AND INSTALLING .
5. Radio/RNS
   • Radio - R-. Refer to RADIO .
   • RNS. Refer to NAVIGATION SYSTEM .
6. Bracket
7. Cell Phone Operating Electronics Control Module -J412-, UMI
   • Different component locations. Refer to Cell Phone Operating Electronics Control Module -J412-  or UMI Component Location )
   • UMI control module on glove compartment, removing and installing. Refer to Cell Phone Operating Electronics Control Module -J412-, REMOVING AND INSTALLING, UMI CONTROL MODULE IN THE GLOVE COMPARTMENT .
   • UMI control module in center console, removing and installing. Refer to Cell Phone Operating Electronics Control Module -J412-, REMOVING AND INSTALLING, UMI CONTROL MODULE IN CENTER CONSOLE .
8. Bolt
   • 1.5 Nm
   • Quantity: 2
