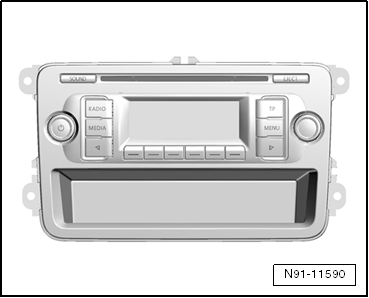

Overview - Radio, Rcd 210: Notes
Familiarity with the function and operation is needed if there are customer concerns. Refer to the appropriate information..
The RCD 210 radio system offers the following features:
- Monochrome display
- FM tuner
- CD player
- UHV Low
- 2 or 4 speaker channels, each with 20 W
- Connection for the External Audio Source Connection -R199-
- Connection for an external CD Changer -R41-
- Optional support for the multifunction steering wheel
- Convenience coding
It is not possible to play the following CD formats:
- CD with 8 cm diameter
- "Mix CDs" (CDs containing files and audio files)
The RCD 210 is OBD-capable.
NOTE:
On Board Diagnostic (OBD). Refer to Vehicle Diagnostic Tester.
