Battery, Disconnecting And Connecting, In Engine Compartment: Disconnecting

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Turn off the ignition and all electrical equipment and remove the ignition key.

Vehicles With A Battery Housing

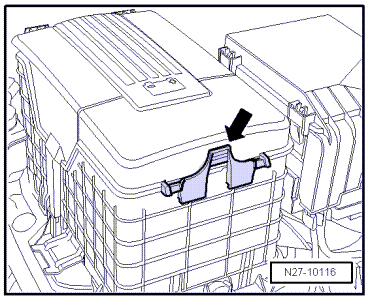

-- Open the locking mechanism -arrow- and remove the battery case cover.

Vehicles With A Battery Jacket

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Open the battery jacket -1-.

Continuation For All Vehicles

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

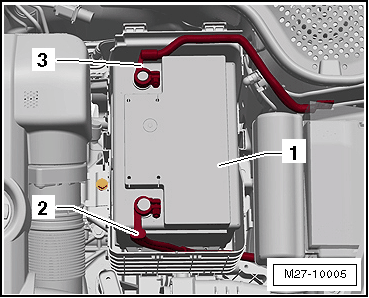

-- Loosen the nut on the battery ground cable clamp -3- several turns.

-- Remove the battery ground cable terminal clamp -3- from the Battery -A- -1-.
