Fuel Level Sensor -G-, Removing And Installing: Removing

-- Observe the safety instructions. Refer to SAFETY PRECAUTIONS .

-- Follow the guidelines for clean working conditions. Refer to PARKING/AUXILIARY HEATER AND FUEL SYSTEM CLEAN WORKING CONDITIONS .

-- Remove the fuel delivery unit. Refer to FUEL DELIVERY UNIT/FUEL LEVEL SENSOR, REMOVING AND INSTALLING .

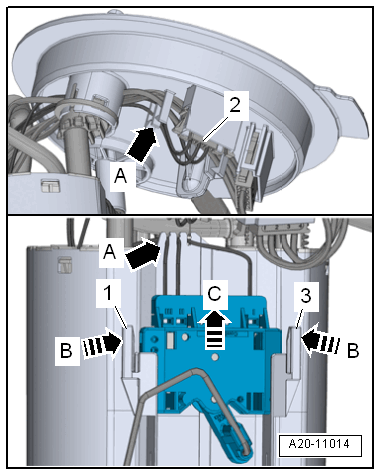

-- Unlock and disconnect the connector -2- from the sealing flange.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disengage and free up the wires on the bracket -A arrows-.

-- Release the catches -1 and 3-.

-- To do this push the catches in the direction of the -arrow B-.

-- Remove the Fuel Gauge Sensor -G- upward in the direction of the -arrow C-.
