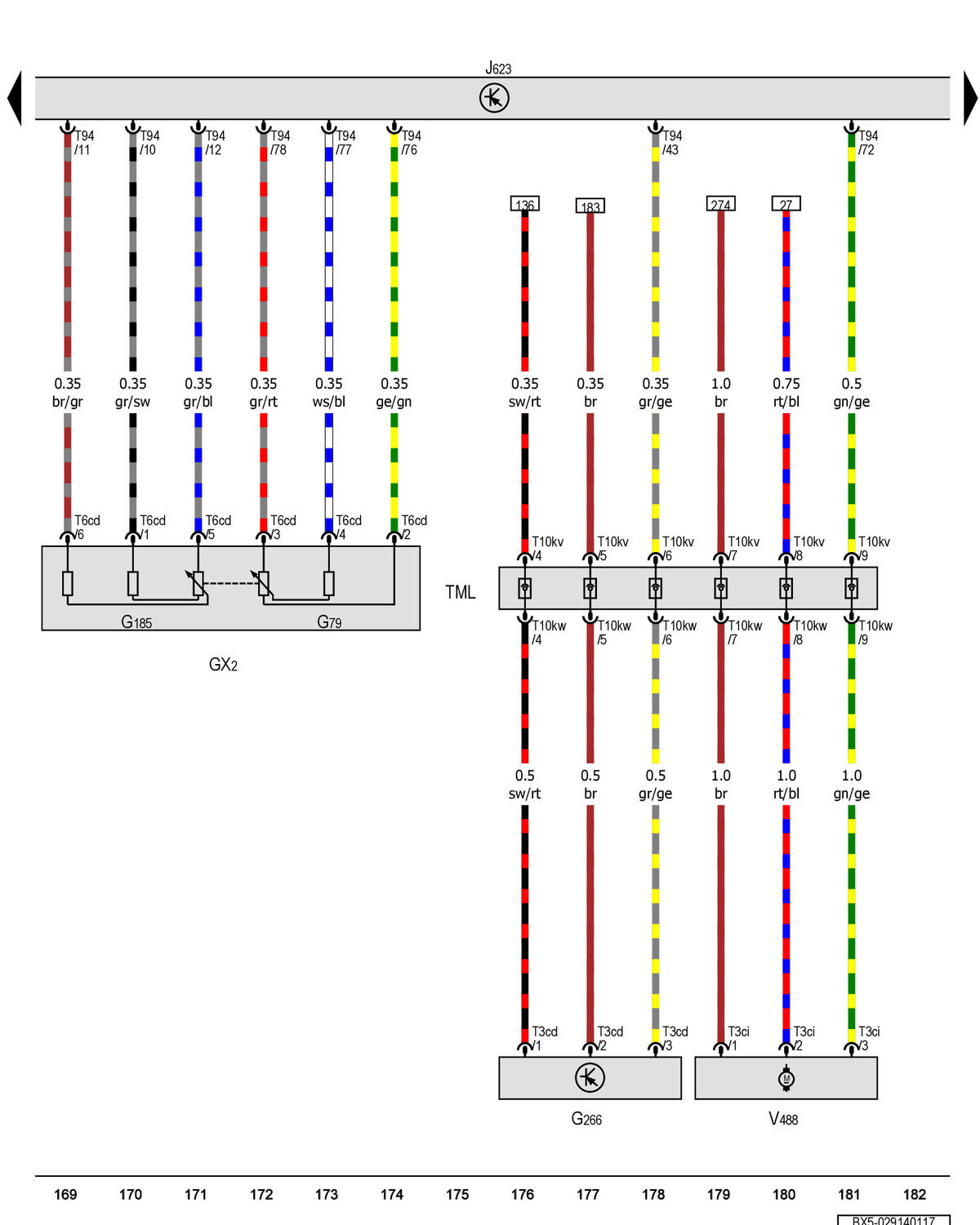

Accelerator Pedal Module, Oil Level Thermal Sensor, Engine Control Module, Heater Support Pump: Notes

GWWBX5-029140117Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
