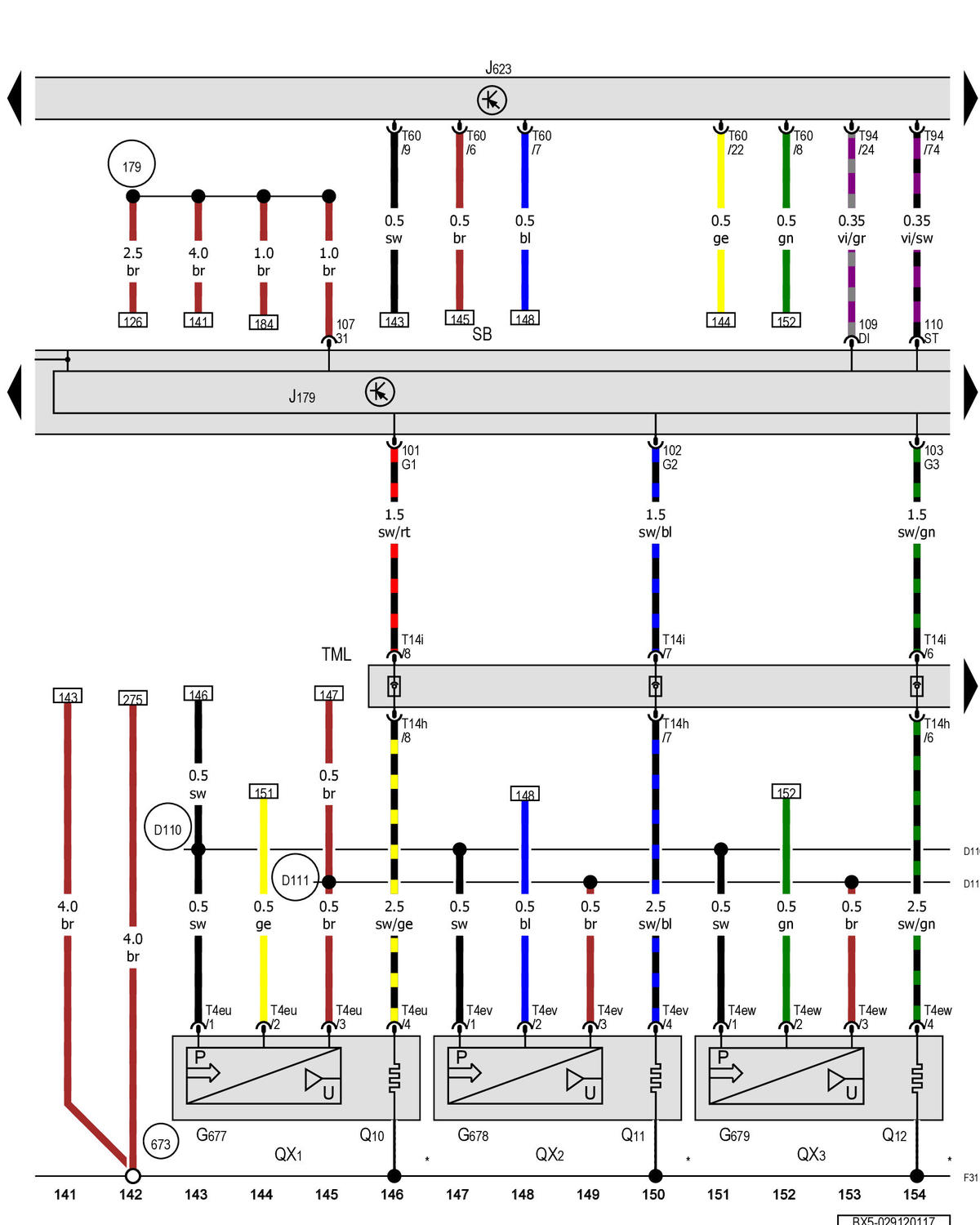

Automatic Glow Time Control Module, Engine Control Module: Notes

GWWBX5-029120117

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
