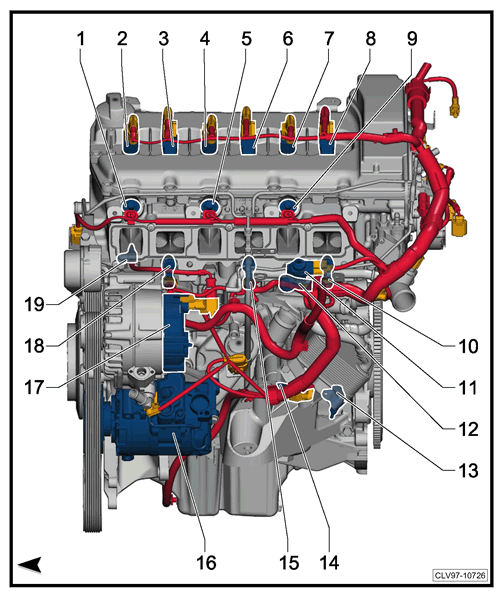

Front View
- 1 - Cylinder 1 fuel injector -N30-
- 2 - Ignition coil 1 with power output stage -N70-
- 3 - Ignition coil 2 with power output stage -N127-
- 4 - Ignition coil 3 with power output stage -N291-
- 5 - Cylinder 3 fuel injector -N32-
- 6 - Ignition coil 4 with power output stage -N292-
- 7 - Ignition coil 5 with power output stage -N323-
- 8 - Ignition coil 6 with power output stage -N324-
- 9 - Cylinder 5 fuel injector -N83-
- 10 - Cylinder 6 fuel injector -N84-
- 11 - Intake manifold runner control valve -N316-
- 12 - Knock sensor 2 -G66-
- 13 - Engine speed sensor -G28-
- 14 - Oil pressure switch -F1-
- 15 - Cylinder 4 fuel injector -N33-
- 16 - A/C compressor regulator valve -N280-
- 17 - Generator with voltage regulator -CX1-
- 17 - Generator -C-
- 18 - Cylinder 2 fuel injector -N31-
- 19 - Engine temperature control sensor -G694-
