Speed Sensor On Rear Axle, Removing And Installing: Removing

-- Raise The Vehicle.

-- Remove the wheel.

-- Remove the brake caliper and secure with wire so that the weight of the brake caliper does not stress or damage the brake hose.

-- Separate speed sensor and speed sensor wiring connector -1-.

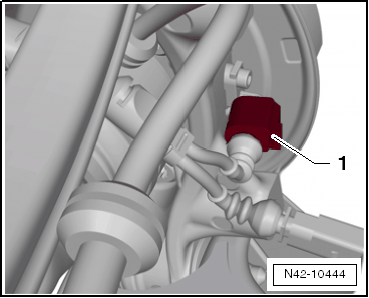

Fig 1: Identifying Rear Speed Sensor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -arrow- from the wheel bearing housing.

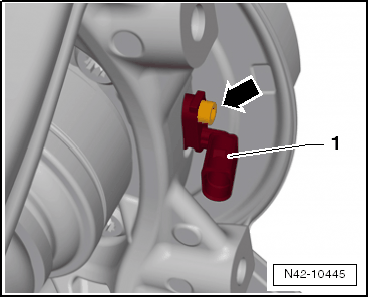

Fig 2: Identifying Rear Speed Sensor Bolt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the ABS speed sensor -1- from the wheel bearing housing.
