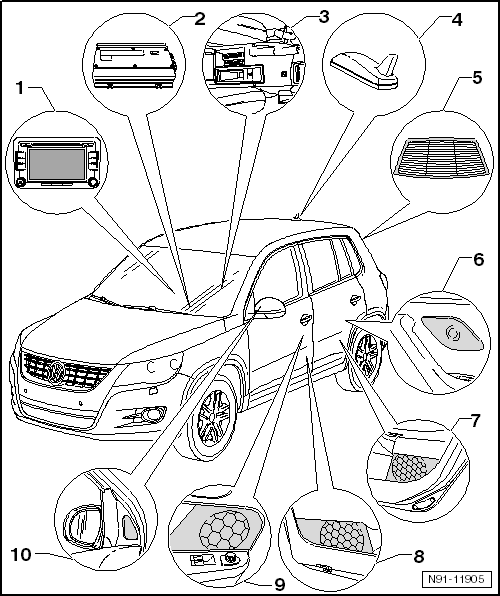

Sound System Overview
- Radio -R-
- Connectors, refer to CONNECTOR OVERVIEW .
- Transport protection, activating/deactivating, refer to TRANSPORTATION SAFEGUARD, ACTIVATING AND DEACTIVATING, PREMIUM 8 .
- Removing and installing, refer to RADIOS AND RADIO NAVIGATION SYSTEMS .
- Digital Sound System Control Module -R12-
- Under the left front seat.
- For more information, refer to SOUND SYSTEM AMPLIFIER .
-
- In the center console.
- External multimedia device interface -R215- refer to EXTERNAL MULTIMEDIA DEVICE INTERFACE -R215- .
- CD changer -R41- CD CHANGER .
- External audio source connection -R199-, refer to EXTERNAL AUDIO SOURCE CONNECTION -R199- .
- Satellite Tuner Antenna -R172-
- Roof antenna
- Antenna systems, refer to ANTENNA SYSTEMS .
- Antenna -R11- / Radio Antenna 2 -R93-
- Antenna systems, refer to ANTENNA SYSTEMS .
- Rear Treble Speaker
- Inside the left and right rear doors
- Removal and installation, refer to REAR TREBLE SPEAKER .
- Rear Bass Speaker
- Inside the left and right rear doors
- Removal and installation, refer to REAR BASS SPEAKER .
- Front Bass Speaker
- Inside the left and right front doors
- Removal and installation, refer to FRONT BASS SPEAKERS .
- Front Midrange Speaker
- Inside the left and right front doors
- Removal and installation, refer to FRONT MID-RANGE SPEAKERS .
- Front Treble Speaker
- Inside the left and right mirror triangles
- Removal and installation, refer to FRONT TREBLE SPEAKER .
