Vehicle Electrical System Control Module -J519-: Removing

-- Switch off the ignition and all electrical consumers and remove the ignition key.

-- Remove the relay panel from the Vehicle Electrical System Control Module, refer to RELAY PANEL ON VEHICLE ELECTRICAL SYSTEM CONTROL MODULE .

-- Disconnect the 3 connectors -arrows-.

-- Remove the Vehicle Electrical System Control Module -1-.

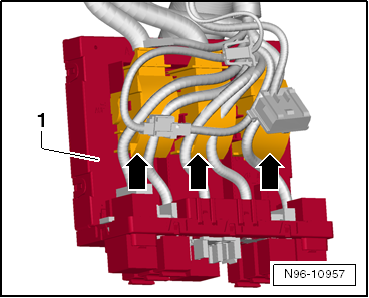

Fig 1: Identifying Vehicle Electrical System Control Module And Connectors

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
