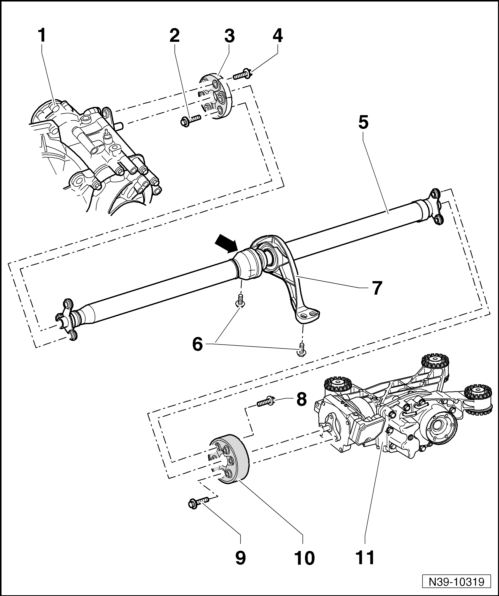

Overview - Driveshaft
NOTE:
Do not perform any service work on the driveshaft.
- Transmission with Bevel Gear
- Bolt
- 50 Nm + 90° turn.
- Allocation.
- For flexible disk to driveshaft
- Always replace.
- Front Flexible Disc
- Allocation.
- Bolt
- 60 Nm
- Allocation.
- For flexible disk to bevel gear.
- Driveshaft
- It cannot be separated at the joint -arrow-.
- Allocation.
- Removing and installing. Refer to DRIVESHAFT, REMOVING AND INSTALLING .
- Bolt
- 25 Nm
- Allocation.
- Intermediate Bearing
- Align it so that it is free of tension.
- Bolt
- 50 Nm + 90° turn.
- Allocation.
- For flexible disk to driveshaft
- Always replace.
- Bolt
- 60 Nm
- Allocation.
- For attaching the flexible disk to the final drive
- Flexible Disc with Vibration Damper
- Allocation.
- Rear Final Drive
- Removing and Installing. Refer to FINAL DRIVE, REMOVING AND INSTALLING .
