Special Tools

Thrust Piece T10105

Puller T10055

Special tools and workshop equipment required

• Guide Pins M8T10273
• Pin VW 460/2 from Removal Device VW 460
• Torque Wrench (5-50 Nm)V.A.G 1331
  Fig 1: Identifying Torque Wrench (5 To 50 Nm) V.A.G 1331

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Charging Device F/Haldex 2 Coup.VAS 6291
• Adapter for Oil Filling VAS 6291/2
  Fig 2: Identifying Charging Device F / Haldex 2 Couplings And Adapters

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Thrust Piece T10105
  Fig 3: Identifying Thrust Piece -T10105-

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Puller T10055
  Fig 4: Identifying Puller T10055

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Pulling Hook T20143
  Fig 5: Extractor Hook T20143

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Thrust Piece T10298
  Fig 6: Identifying Thrust Piece T10298

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Slide Hammer-Complete Set VW 771
  Fig 7: Adapter VW 771/40 From Slide Hammer-Complete Set VW 771

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• additional part for VW 771VW 771/37
  Fig 8: Identifying Additional Part -VW 771/37- For -VW 771-

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Torque Wrench V.A.G 1332
• Seal Puller T10397
• Seal Puller T10398
• Assembly Tool T10399
• Thrust Piece T10400

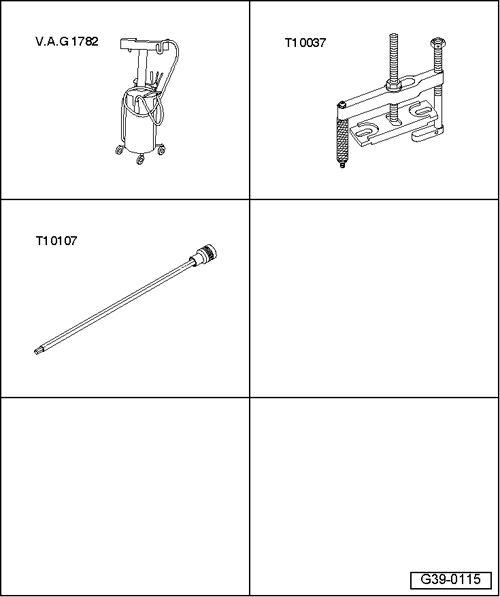

Special tools and workshop equipment required

• Used Oil Collecting and Extracting Device V.A.G 1782
• Puller T10037
• Socket and Extended Bit T10107

Special tools and workshop equipment required

• Thrust Plate VW 401
• Thrust Plate VW 402
• Punch VW 407
• Thrust Disc VW 412
• Wheel Bearing Assembly Set 3253
• Assembly Tool T10047

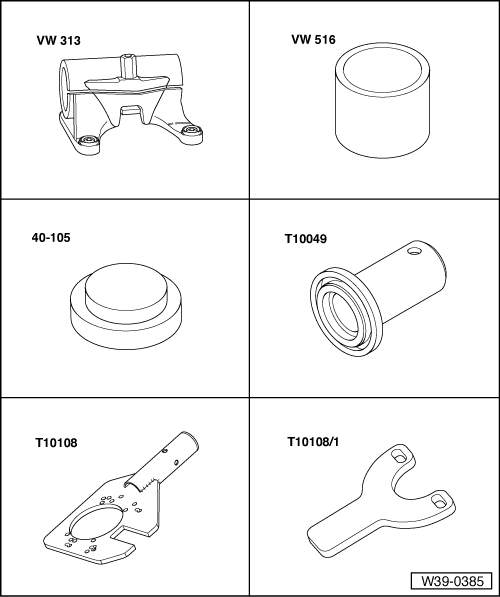

Special tools and workshop equipment required

• Holding Fixture VW 313
• Tube 37 mm Dia.VW 516
• Thrust Piece 40-105
• Thrust Piece T10049
• Gearbox Support T10108
• Stop Plate T10108/1

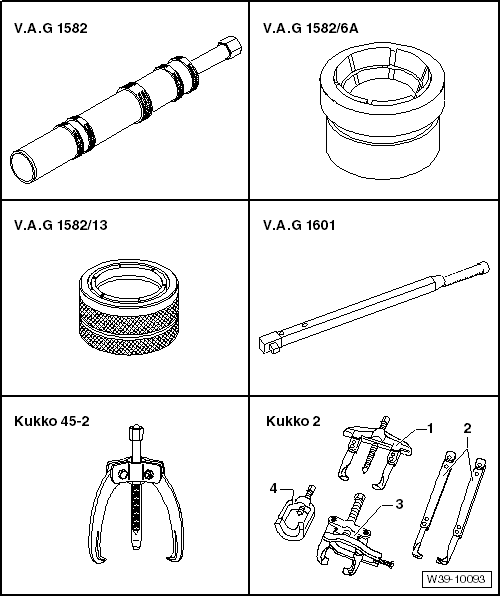

Special tools and workshop equipment required

• Tapered Roller Bearing Puller V.A.G 1582 with a Short Sleeve
• Attachment to VAG 1582V.A.G 1582/6 or attachment to VAG1582 V.A.G 1582/6A
• -1- 2-Arm Puller 20/10
• Adapter V.A.G 1582/13
• Torque Wrench V.A.G 1601
• 3-Arm Puller 45-2
