Steering Gear Bonded Rubber Bushing: Removing: Notes

NOTE:

The bonded rubber bushings must always be replaced in pairs on each side.

The following describes removing and installing one bonded rubber bushing. Removing and installing the second bonded rubber bushing is identical.

Always pay attention to the allocation of the bonded rubber bushings for the steering gear, refer to Allocation of the Bonded Rubber Bushings for the Steering Gear .

-- Remove the steering gear, refer to STEERING GEAR .

-- Install the special tools as shown in the figure.

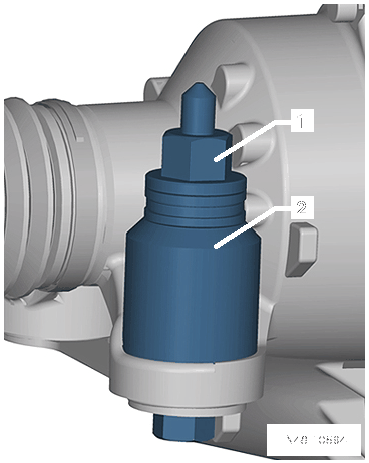

Fig 1: Mounting Tube T10390/1 & Nut T10390/3
GWWN48-10594Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. PAS Housing Mount Assembly Tool - Nut T10390/3
  2. PAS Housing Mount Assembly Tool - Tube 1T10390/1

-- Remove the bonded rubber bushing.
