Special Tools

Fig 1: Identifying Special Tools -- Needle Bearing (Polygon Bearing) For Right Flanged Shaft, Replacing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Press Plate VW401
• Press Plate VW402
• Press Piece - RodVW407
• Press Piece - Multiple Use VW412
• Bearing Installer - Rear Wheel Bearing Kit VAS3253
• Bearing Installer - Needle BearingT10047

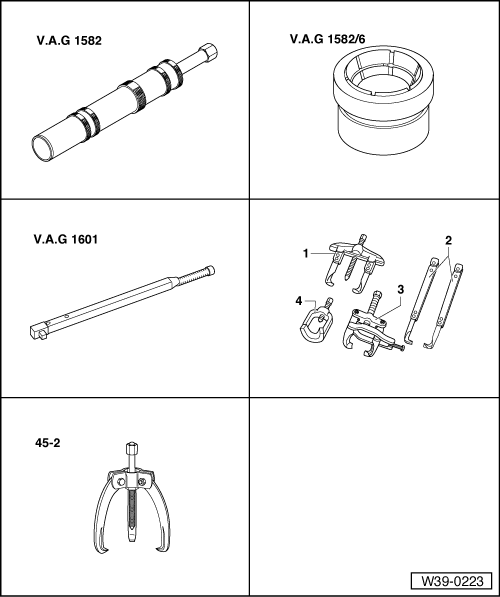

Fig 2: Identifying Special Tools -- Bevel Box Output Flange Seal, Replacing (Bevel Box Removed)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Puller - Taper Roller Bearing VAG1582
• Puller - Taper Roller Bearing - Adapter 6AVAG1582/6A
• Torque Wrench 1601VAG1601
• 20/10 two-arm puller
• 45-2 three arm puller

Fig 3: Identifying Special Toolset: Kukko Pullers And Attachments

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Puller - Taper Roller Bearing VAG1582
• Puller - Taper Roller Bearing - Adapter 6 VAG1582/6 or Puller - Taper Roller Bearing - Adapter 6AVAG1582/6A
• Puller - Kukko 2-Arm - 70-180mm 20/10
• Puller - Taper Roller Bearing - Adapter 13 VAG1582/13
• Torque Wrench 1601VAG1601
• Three-Arm Puller 45-2

Fig 4: Identifying Special Toolset: Accessories And Attachments

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Press Piece - Multiple Use VW412
• Press Piece - Multiple Use VW454
• Press Piece - Multiple Use VW455
• Press Plate VW401
• Guide Pins - M8T10273
• Removal Device Pin 2 VW460/2

Fig 5: Identifying Special Tools -- Bevel Box Output Flange Seal, Replacing (Bevel Box Removed)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Holding Fixture VW313
• Press Piece - 42mm VW516
• Press Piece - Multiple Use 40-105
• Seal Installer - Flange Shaft T10049
• Gearbox Support T10108
• Gearbox Support T10108/1

Special tools and workshop equipment required

• Used Oil Collection and Extraction Unit SMN 372500
• Puller - Flanged Shaft T10037
  Fig 6: Identifying Flanged Shaft

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Tensioning Strap T10038
  Fig 7: Identifying Tensioning Strap T10038

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Seal Installer - Flange Shaft T10049
  Fig 8: Identifying Thrust Piece T10049

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Socket And Extended Bit T10107A
  Fig 9: Identifying Socket And Extended Bit

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Seal Installer - Bevel Box T10243
  Fig 10: Identifying Thrust Piece T10243

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Seal Installer - Bevel Box T10298
  Fig 11: Identifying Thrust Piece T10298

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Puller - Crankshaft/Power Steering Seal T20143
  Fig 12: Extractor Hook T20143

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Charging Device For Haldex Coupling 2 VAS6291A
  Fig 13: Identifying Charging Device For Haldex Coupling 2 VAS 6291 A

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Charging Device For Haldex Coupling 2 - Adapter 2 VAS6291/2
  Fig 14: Identifying Charging Device F / Haldex 2 Couplings And Adapters

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Slide Hammer Set VW771
  Fig 15: Identifying Slide Hammer Set

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Slide Hammer Set - Hook VW771/37
  Fig 16: Identifying VW771/37 Tool

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

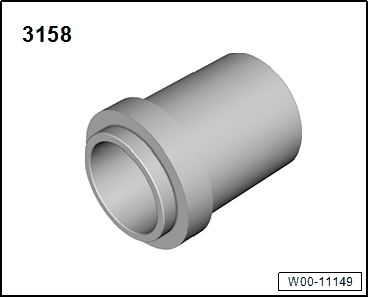

• Seal Installer - Axle Flange 3158
  Fig 17: Identifying Axle Flange

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Seal Installer - Flange Shaft 3305
  Fig 18: Identifying Seal Installer - Flange Shaft

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Edition: K0059181421 - FU - 12/09/2014 - TMP
