Coolant Level, Checking And Filling If Necessary

-- Check the coolant level in the reservoir when the engine is cold.

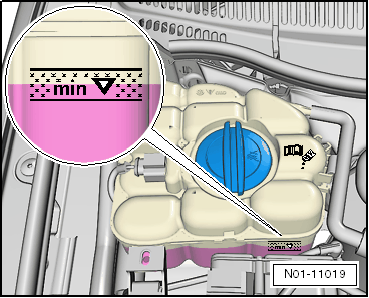

Fig 1: Checking Coolant Level

Courtesy of AUDI OF AMERICA, LLC

• Pre-delivery inspection: coolant level minimum to the "MAX mark".
• At the pre-delivery inspection a coolant level above the "MAX mark" is permitted.
• Extracting the increased coolant level is not necessary because the coolant level can be lowered on new vehicles through the venting process.
• Inspection: coolant level above "MIN mark".

-- Ob hybrid vehicles check the additional coolant reservoir.

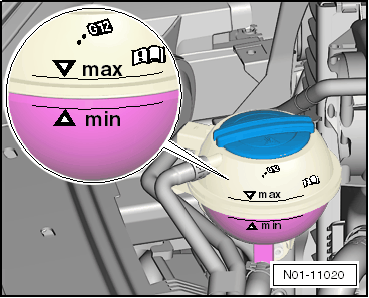

Fig 2: Extract Coolant Until The Level Is Between The Min And Max Marks

Courtesy of AUDI OF AMERICA, LLC

-- If coolant level is too low, add the missing amount according to the mixture ratio.
