Engine Compartment Left, Part II

  1. 1  - Driver front airbag crash sensor
  2. 2  - Left front ABS wheel speed sensor -G47-
  3. 3  - Left front brake pad wear sensor -G34-
  4. A  - 10-pin connector -T10g-
  5. A  - 6-pin connector -T6z-
  6. 12  - Ground connection in engine compartment, left
  7. 642  - Electronic fan control ground connection

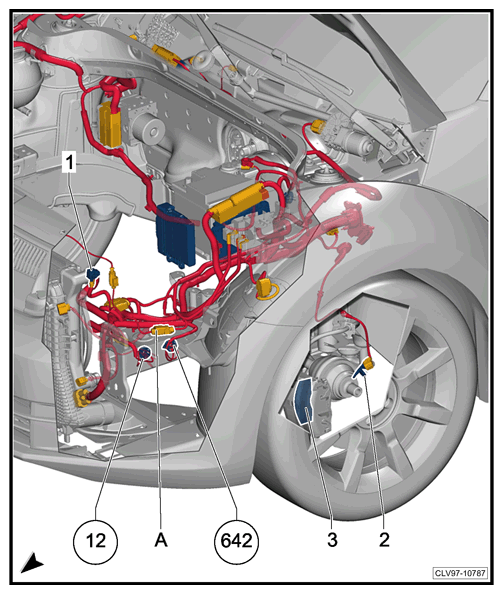

G12752290Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
