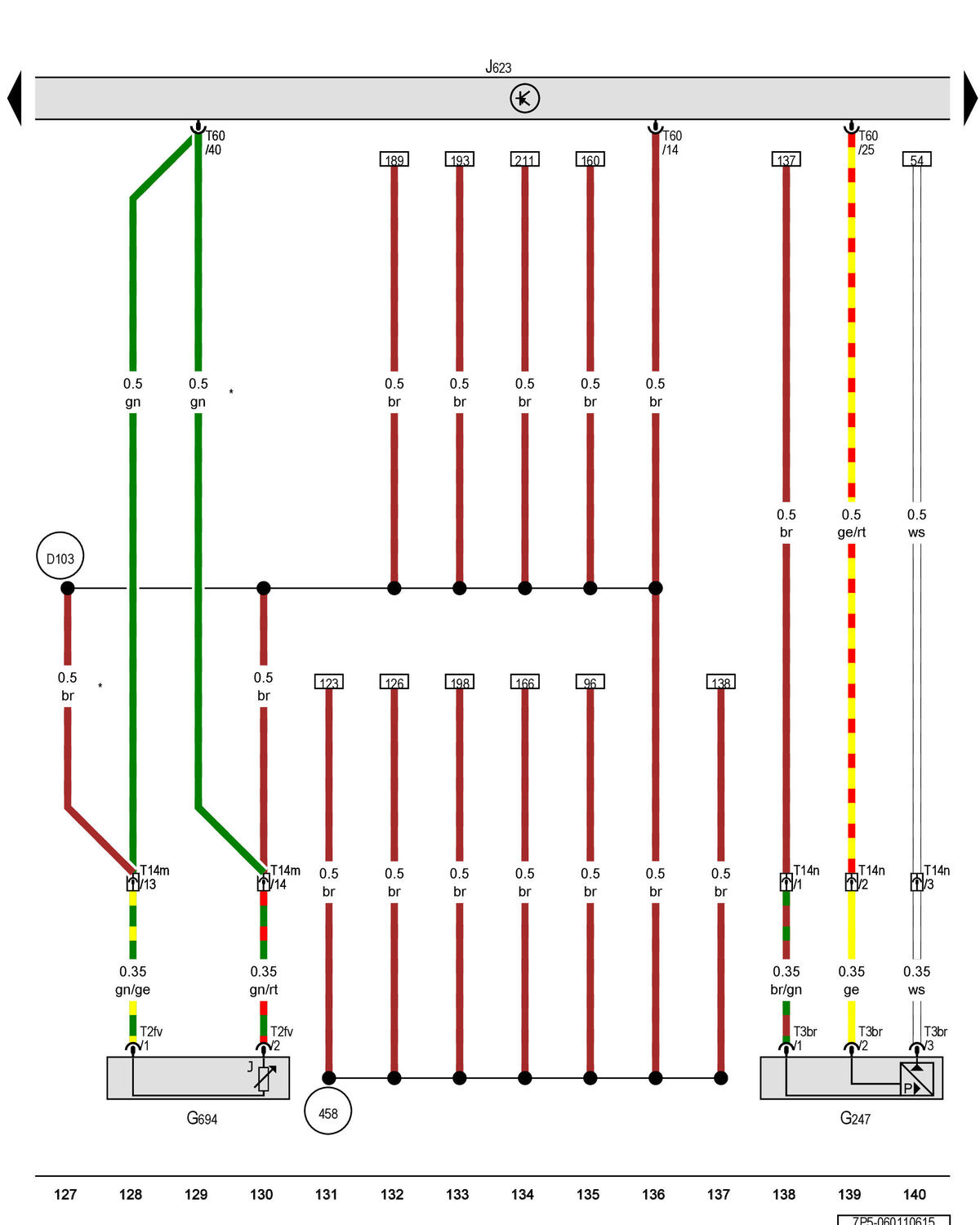

Fuel Pressure Sensor, Engine Temperature Control Sensor, Engine Control Module: Notes

GWW7P5-060110615

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
