Torque References Description

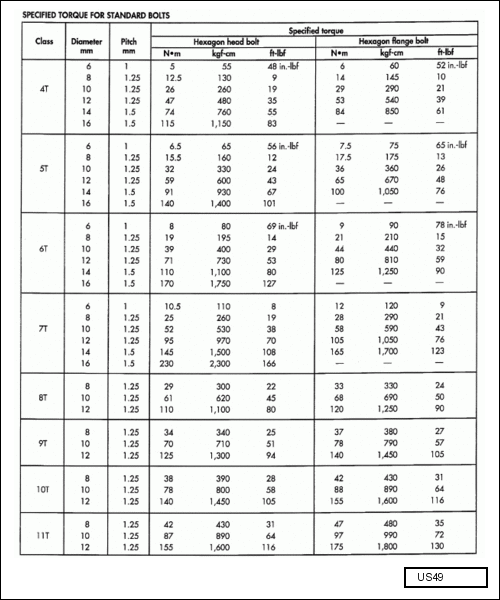

Fig 1: Fastener Tightening Torque Specifications Table
GWWUS49000Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

TORQUE SPECIFICATIONS

Individual Torque Charts appear within many of the Groups. Refer to the Standard Torque Specifications chart for torque references not listed in the individual torque charts.
